LOW THRESHOLD SETTING:
Press the center button to advance to
COLOR SCHEME.

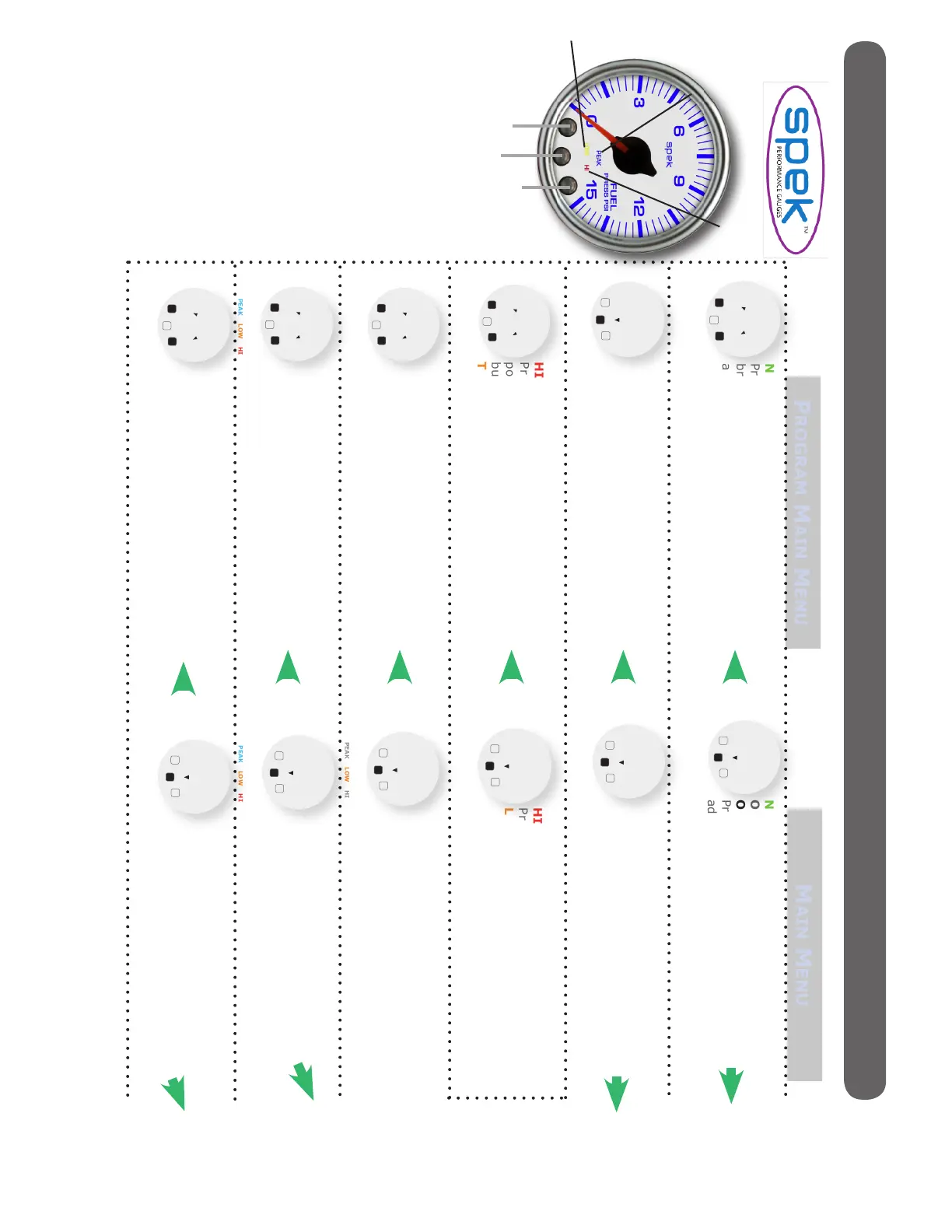

Flow Chart Programming Instructions for : Fuel Rail Pressure Gauge 2 1/16”
5
START HERE
(Press one
button at a time)
NORMAL/DIAL BRIGHTNESS:
Press the down or up button to adjust dial
brightness. Press the center button to save and
advance to PEAK PLAYBACK.
NORMAL
LIGHTING
PEAK LOW HI
PRESS ONE
AT A TIME
DOWN
-
UP
+
PEAK PLAYBACK:
Reads the highest value displayed on the Gauge
since the last time the PEAK value was dis-
played. PEAK value will be held in memory until
erased by pressing the RIGHT or LEFT button
while in the PEAK level Press the center button
to advance to HIGH RED-LINE SETTING.
HIGH RED-LINE SETTING:
Press the down or up button to move dial
pointer to the high threshold. Press the center
button to save and advance to LOW
THRESHOLD SETTING.
HI
LIGHT LIT
PEAK LOW HI
PRESS ONE
AT A TIME
DOWN
-
UP
+
LOW PRESSURE SETTING:
Sets the value at which the Low Pressure Warn-
ing is reached. The dial faceplate will flash
RED for 60 seconds and then stay lit. Press the
LEFT or RIGHT buttons to select the Low Pres-
sure Setting. Press the center button to save
and advance to COLOR SCHEME.
COLOR SCHEME:
Press down and up buttons to select a color
scheme. (OFF-VIOLET-BLUE-GREEN-YELLOW-
ORANGE-RED-WHITE). Press the center but-
ton to save and return to NORMAL/DIAL
BRIGHTNESS.
NORMAL/DIAL BRIGHTNESS:
ON POWER UP THE GAUGE READS THE PRESSURE.
OPTION: CALIBRATE GAUGE
Press the center button to
advance to PEAK PLAYBACK.
NORMAL
LIGHTING
PEAK LOW HI
PRESS
PEAK PLAYBACK:
Press the center button to advance to
HIGH RED-LINE SETTING. OR
OPTION:RESTORE FACTORY DEFAULT
HIGH RED-LINE SETTING:
Press the center button to advance to
LOW THRESHOLD SETTING.
HI
LIGHT LIT
PEAK LOW HI
PRESS
COLOR SCHEME:
Press the center button to advance to
NORMAL/DIAL BRIGHTNESS. OR
OPTION A:DEMO MODE
Down
Button
PEAK
LOW
HI
Up
Button
Mode
Button
PEAK,LOW,HI
LIGHT LIT
PEAK LOW HI
PRESS ONE
AT A TIME
DOWN
-
UP
+
DIAL BRIGHTNESS:
Press the RIGHT or LEFT command buttons to
Control the brightness of the faceplate illumina-
tion. Press the center button to save and ad-
vance to NORMAL OPERATION.
PEAK,LOW,HI
LIGHT LIT
PEAK LOW HI
PRESS
DIAL BRIGHTNESS:
Press the center button to
advance to NORMAL OPERATION
OPTION A:POINTER BRIGHTNESS
To Next Page
