Auto Page RF-425LCD - 6 Pin Door Lock Connector

7
VIOLET UNLOCK... N/O (87)
BROWN UNLOCK SWITCH... N/C (87a)
LT. BLUE UNLOCK MOTOR... COMMON (30)
LT. GREEN LOCK MOTOR... COMMON (30)
VIOLET/RED LOCK... N/O (87)
20A
WHITE LOCK SWITCH...N/C (87a)
LOCK
UN
LOCK
NOT USED
NOT USED
12+ VOLTS

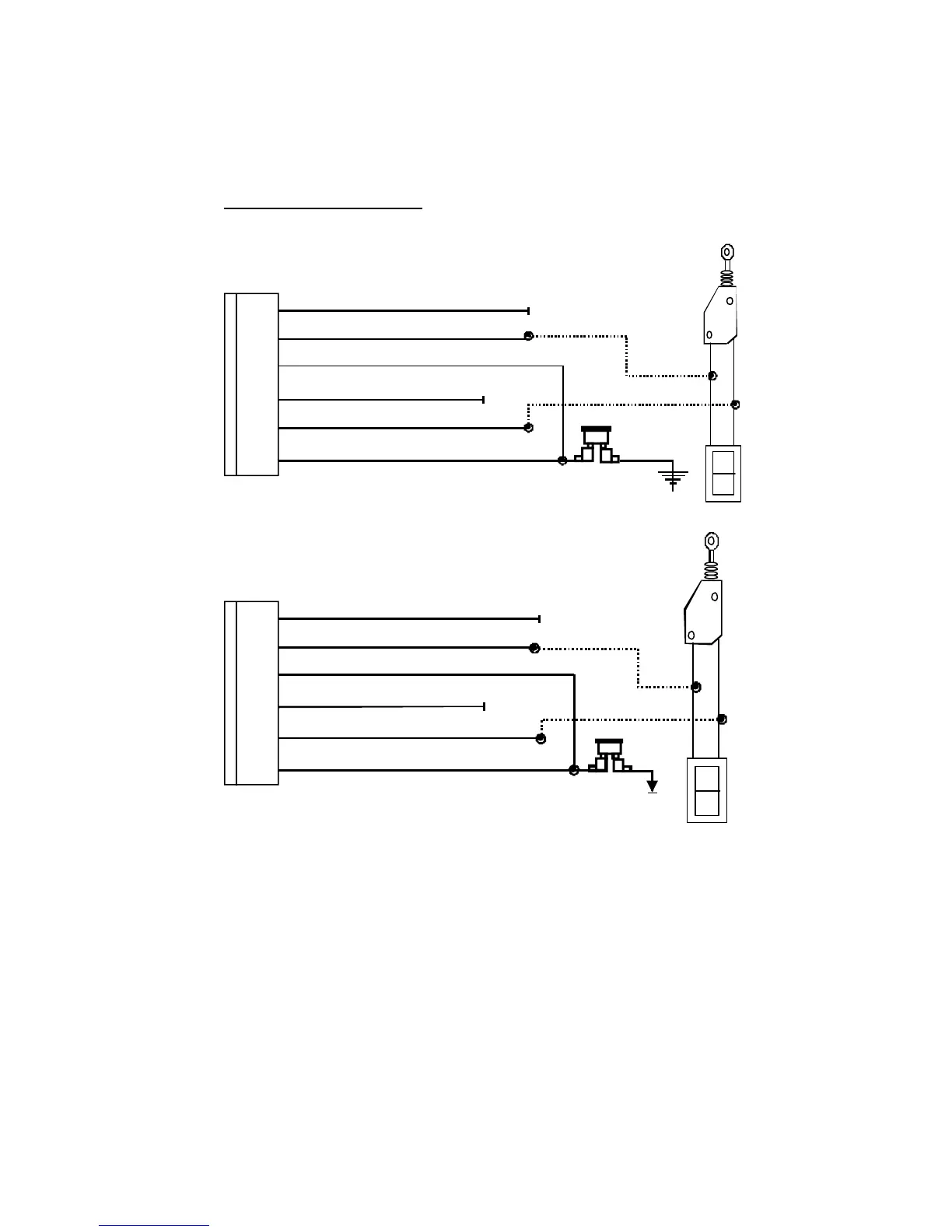

6 PIN DOOR LOCK CONNECTOR:
3-WIRE NEGATIVE
3-WIRE POSITIVE
VIOLET UNLOCK... N/O (87)
BROWN UNLOCK SWITCH... N/C (87a)
LT. BLUE UNLOCK MOTOR... COMMON (30)
LT. GREEN LOCK MOTOR... COMMON (30)
VIOLET/RED LOCK... N/O (87)
20A
WHITE LOCK SWITCH...N/C (87a)
NOT USED
NOT USED
LOCK
UN
LOCK
GROUND
