Auto Page RF-425LCD - Programming Features; Transmitter Programming

9
VACCUM DOOR LOCK SYSTEM
PROGRAMMING
A. TRANSMITTER PROGRAMMING
Enter:
1. Turn the Ignition 'switch ‘OFF/ON’ 3 TIMES and stay in ON position. Within 15 seconds.
2. Push the Valet switch 2 times and hold in on the 2
nd
push, when a long chirp is heard
then release the valet switch. You are now in the Transmitter programming mode.
Program:
1. Press any button on transmitter 1 until the siren responds with a confirming chirp; the
first transmitter is now programmed.
2. Press any button on the second transmitter until the siren responds with a confirming
chirp; the second transmitter is now programmed.
3. Apply the same procedure to program 3rd and 4th
.
Exit: Turn Ignition to 'OFF' position, or leave it for 15 seconds. 3 long chirps and 3 Parking
Light will confirm exit.
Note: If more than 4 transmitters programmed, the system will only keep the last four.

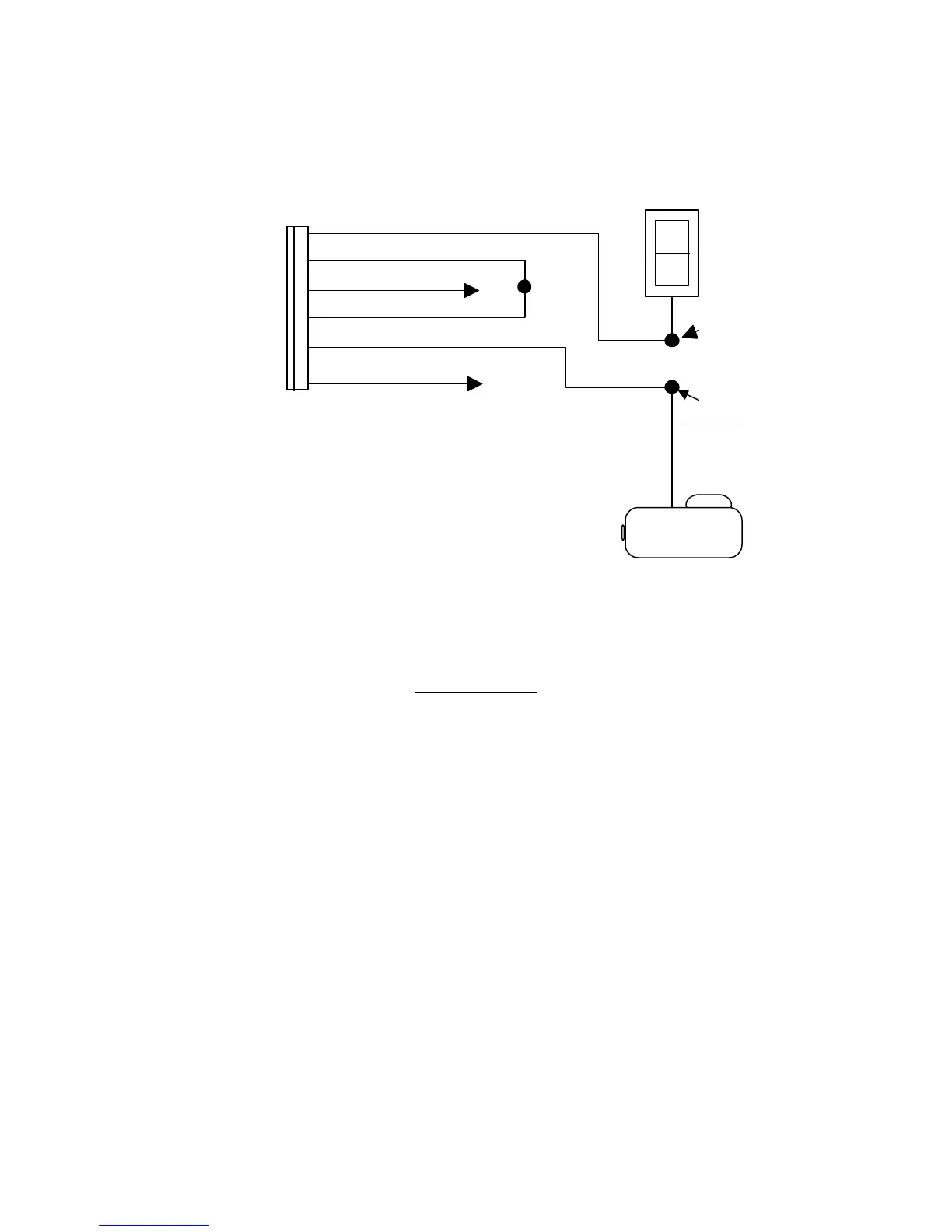

LOCK
UN
LOCK
BROWN
FROM DOOR
BROWN WIRE
BLUE WIRE
VIOLET WIRE
(12v B+)
WHITE WIRE
GREEN WIRE
GREEN WIRE
TO PUMP
VIOLET / RED WIRE
(GROUND)
405 6-PIN
CONNECTOR
LOCK PUMP
