9

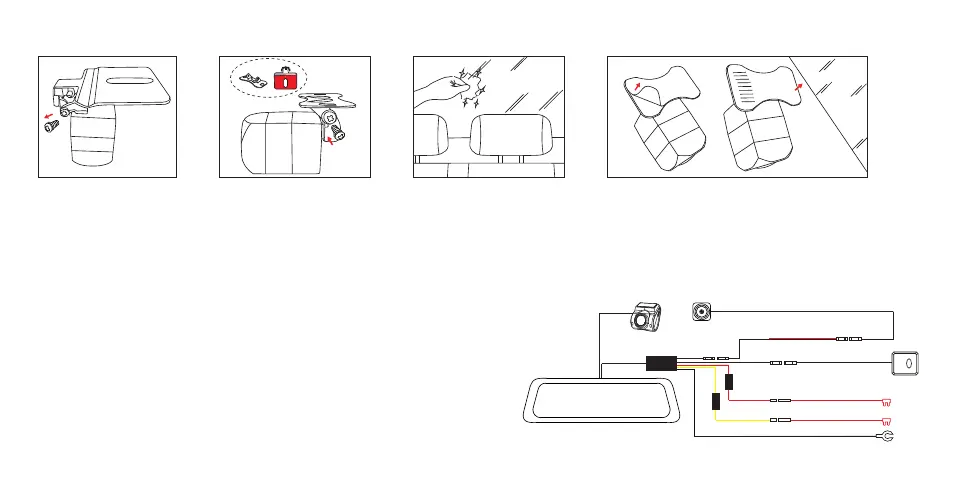

2. Mount rear camera onto car rear window.
● Please remove the screws from the rear camerabracket.
● Replace the rear camera bracket with the windshield mounting bracket.
● Tear off the tape on the windshield mounting bracket.
● Please use water, alcohol, cloth, etc. to clean the rear windshield where the rear camera is scheduled installed.
● Attach the rear camera to the windshield and hold down the windshield mounting bracket for about 30 seconds until it sticks firmly.
4. Wiring Diagram
1. Connect the two cables fixed to the mirror to the 9-pin connector of the
power cable and the front camera respectively; connect the other ends
of the power cable with the video cable and GPS antenna; connect the
video cable to the rear camera; and insert the SD card.
GPS
GND
ACC
B+
connect to the reverse light
Fuse tap adapters
connect to ACC
GPS Antenna (Optional Accessory)
connect to constant fuse
connect to any metal in the car
