12
Most cars have at least one obvious ground point near the fuses box, please connect the ground lug to
the ground point (as shown in the picture).
* If you have to remove a fuse from your car, you need to insert the removed fuse into the empty slot of the
supplied fuse adapter.
Routing
● Route the cables through the top ceiling and the A-pillar so that it
does not interfere with driving.
● Make sure that the cable installation does not interfere with the
vehicle’s airbags or other safety features.
● If you install the rear camera on the license plate, then you may look
for an opening or drill a hole to thread the connector cable plug of
the camera into the interior of the vehicle.

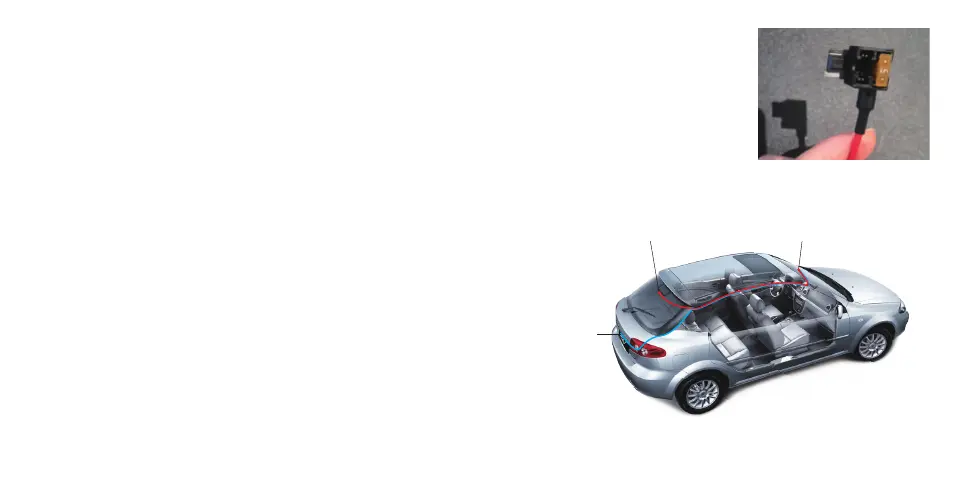

● The following routing diagrams are for reference only.
Rear Camera Installation Postion Front Camera Installation Postion
Rear Camera
Installation Postion
