Pilot Operating Handbook
Cavalon
SECTION 7
SYSTEM DESCRIPTION
AutoGyro_POH_Cavalon 915iS Revision 1.0 – Issue Date 08.MAY.2019 7-16

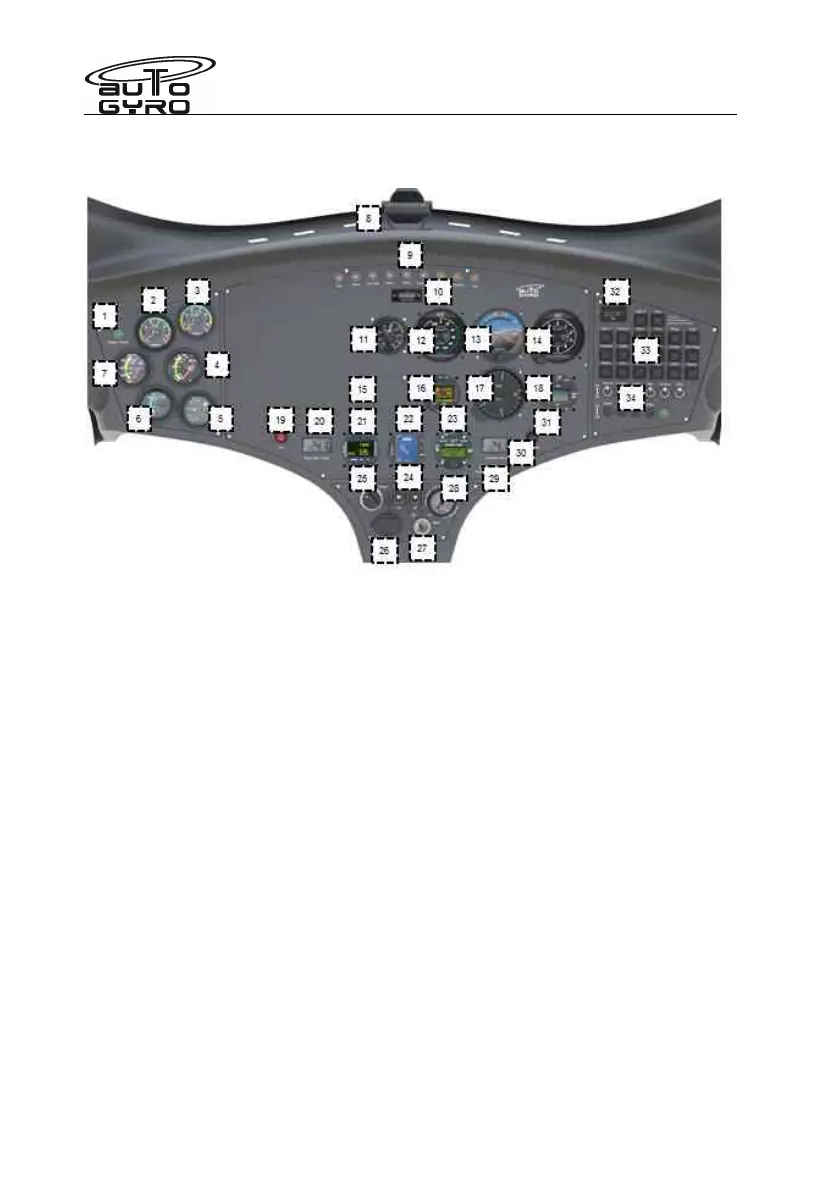

1 – Water temperature indication 20 – deleted
2 – Engine RPM 21 – ATC transponder (if installed)
3 – Rotor RPM 22 – Collision Avoidance System (if inst.)
4 – Oil pressure 23 – Radio (if installed)
5 – Fuel level indicator 24 – LANE switches
6 – Cylinder head temperature 25 – Pneumatic mode selector
7 – Oil temperature 26 – 12V power receptacle (if installed)
8 – Magnetic compass 27 – Master/starter switch
9 – Warning lights 28 – Trim/brake pressure gauge
10 – Lateral trim indicator 29 – Audio in (if installed)
11 – Deleted 30 – OAT indicator
12 – Air speed indicator 31 – Pre-rotator overdrive/override
13 – Attitude Indicator (if installed) 32 – Hour meter
14 – Altimeter 33 – Circuit Breaker Panel
15 – Cut-out 57mm / 2 ¼” for optional inst. 34 – Switches
16 – Basic Flight Instrument (if installed)
17 – Vertical Speed Indicator (if installed)
18 – Deleted
19 – Cooling fan manual activation
