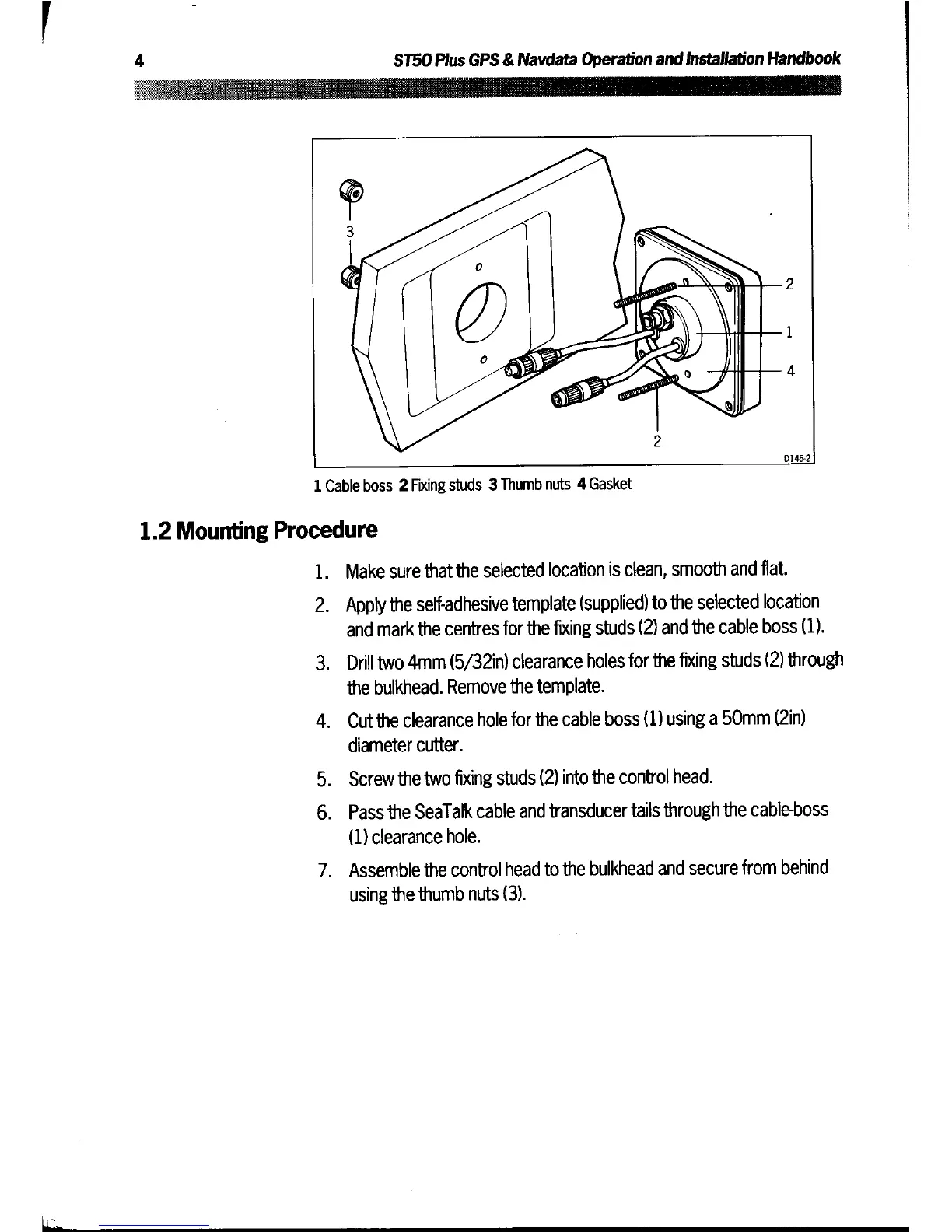

1

Cable

boss

2

Fusing

studs

3Thumb

nuts

4

Gasket

1

.2

Mounting

Procedure

1

.



Make

sure that

the

selected

location

is

clean,

smooth

and

flat

.

2

.



Apply

the

self-adhesive

template

(supplied)

to

the

selected

location

and

mark

the

centres

for

the

fixing

studs

(2)

and

the

cable

boss

(1)

.

3

.



Drill

two

4mm

(5/32in)

clearance

holes

for

the

fixing

studs

(2)

through

the

bulkhead

.

Remove

the

template

.

4

.



Cut

the

clearance

hole

for

the

cable

boss

(1)

using

a

50mm

(2in)

diameter

cutter

.

5

.



Screw

the

two

fixing

studs

(2) into

the

control

head

.

6

.



Pass

the

SeaTalk

cable

and

transducer

tails

through

the

cable-boss

(1)

clearance

hole

.

7

.



Assemble

the

control

head

to

the

bulkhead

and secure

from

behind

using

the

thumb

nuts

(3)

.
