p. 10 / 98
SL 9xx-MT-EN

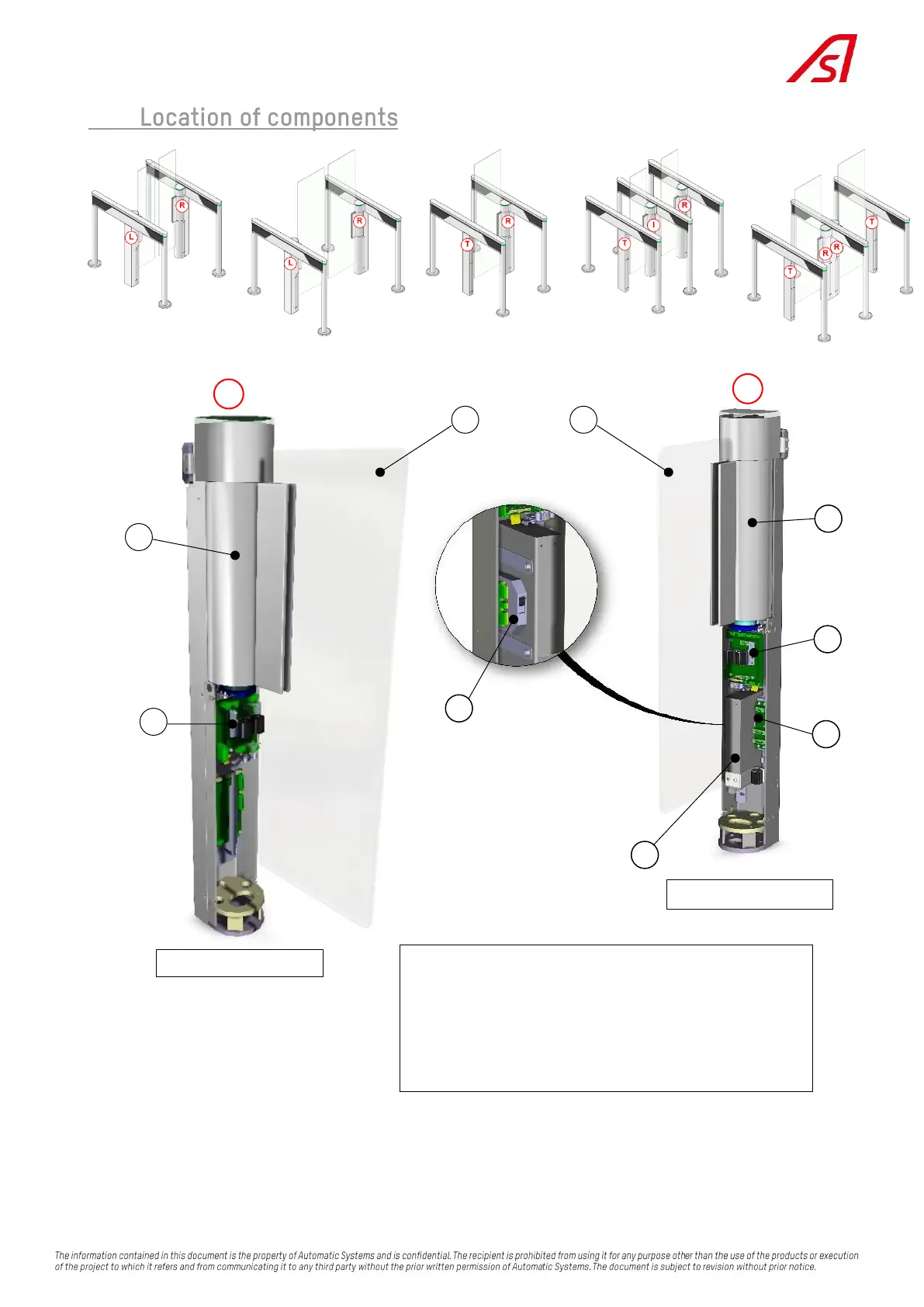

2.3.
L
R
1
2
2
3
6
1
3
5
4
1. Left/Right swinging obstacle
2. Left/right moving cylinder (motorized)
3. Motor control circuit boards AS1185+AS1170.
4. Circuit board AS1172 (24VDC distribution)
5. Regulated power supply
6. Main switch
7. Input/Output Circuit Board AS1168
Left kinematic post
Right kinematic post
SlimLane 940
SlimLane 950
SlimLane 944
SlimLane 945
SlimLane In Lane
