Automatic Systems SlimLane 9 Series User Manual

p. 26 / 98
SL 9xx-MT-EN

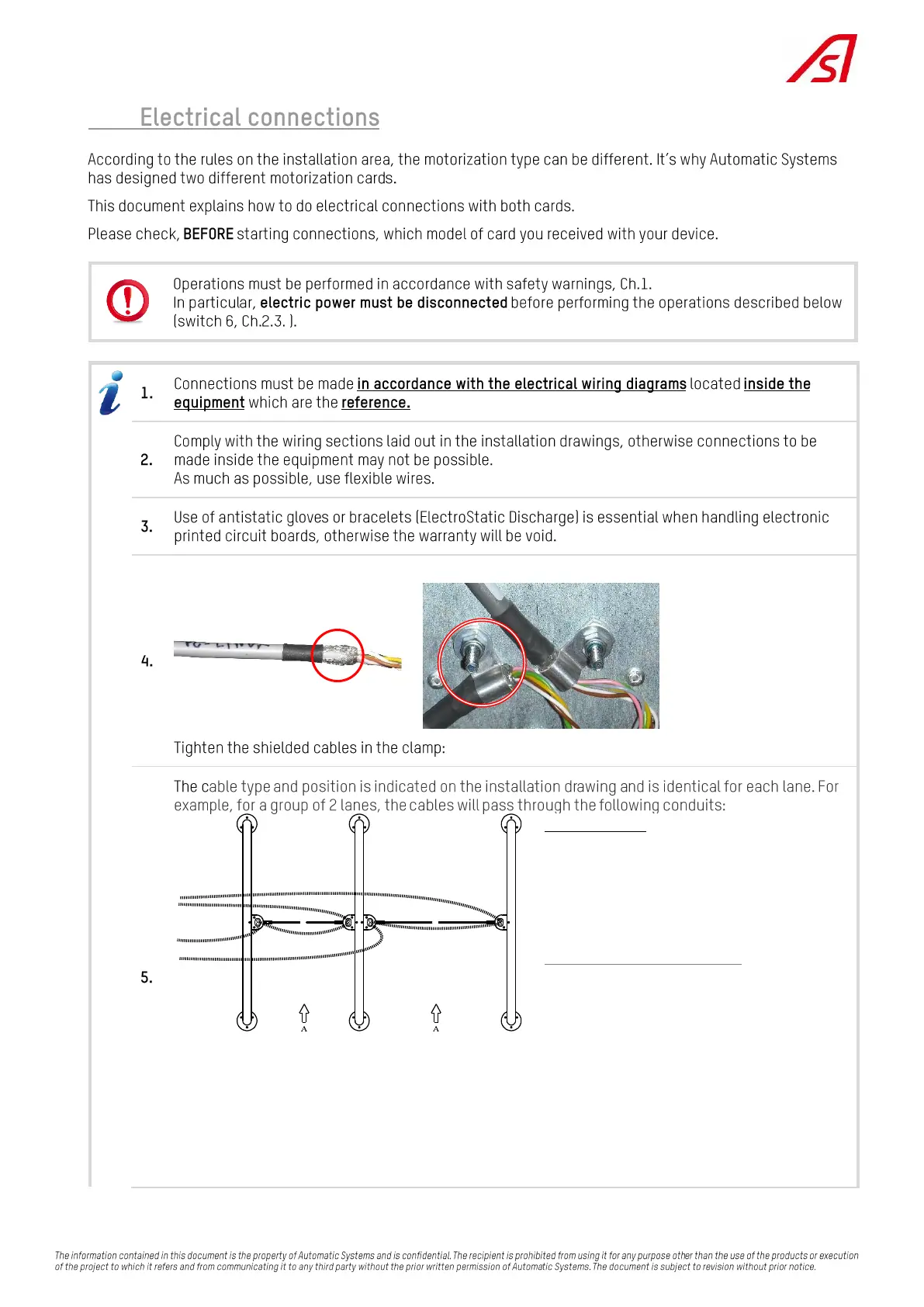

3.5.
Mandatory cables:
A: power supply
F: 24 V supply for command
G: 24 V supply for power
H: Ground
I: CAN
According to customer's equipment:
B*: cable from the reader to the central unit
C: Ethernet cable for remote control
D*: cable from the central unit to the Input/Output
board
E: Evacuation
* When the readers are autonomous and not related to
a central management unit, each reader must be
directly connected to the I/O board located in the left
kinematic post
 cable B is not necessary and cable
(D) coming from the right housing reader may pass
through the conduit between the housing (see detail
here after).
A B
A B
B C D E
B C D E
F G H I (D)
F G H I (D)
