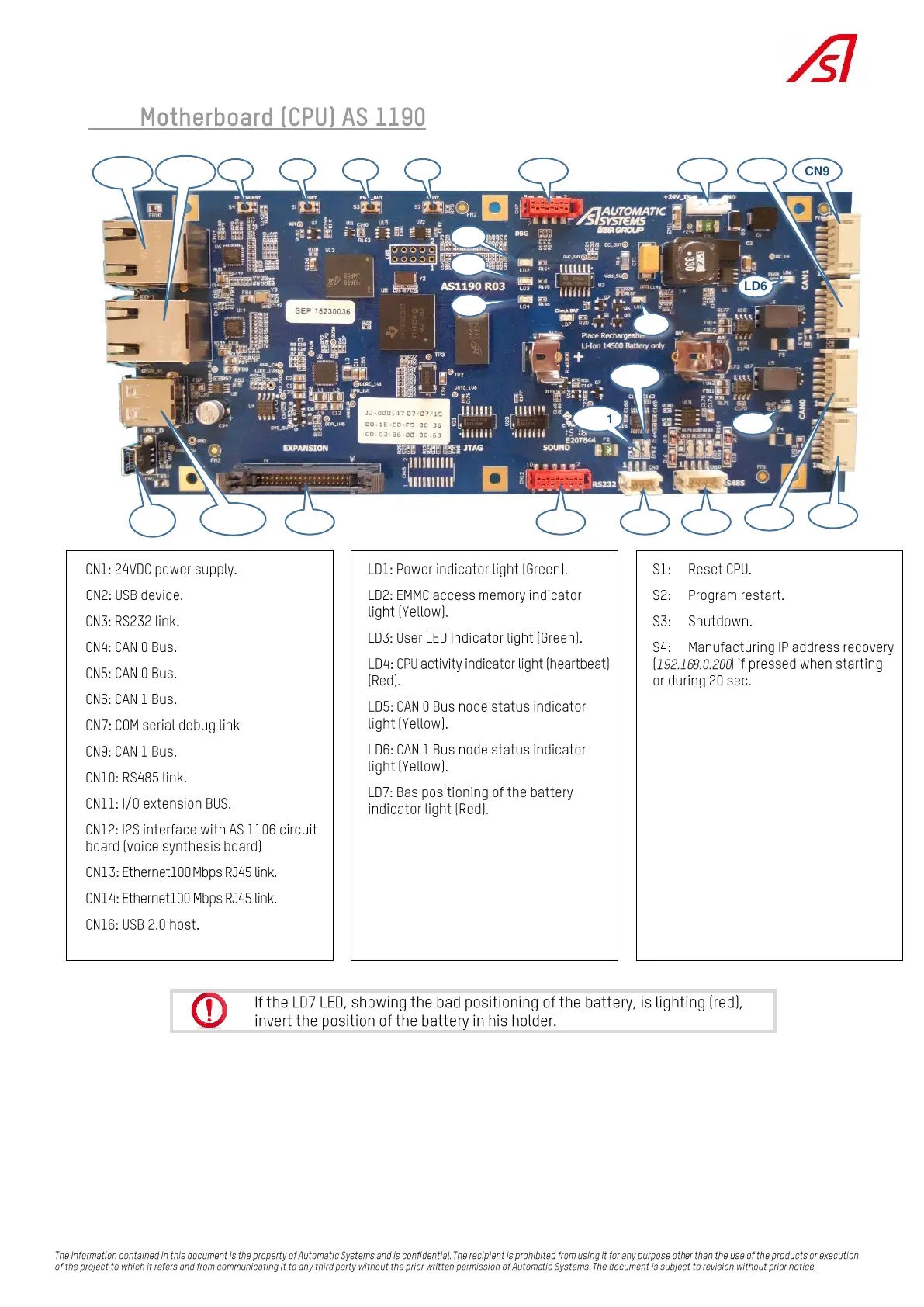

SL 9xx-MT-EN
9.3.
S4
S1
S3
S2
LD2
LD3
LD4
LD6
LD1
CN16
CN2
CN13
CN14
CN11
CN12
CN3
CN10
CN1
CN9
CN4
CN5
CN6
CN7
LD5
ETH1
ETH2
