Automatic Systems SlimLane 9 Series - Inlane Left Railing; Inlane Intermediate Kinematic Post

p. 11 / 98
SL 9xx-MT-EN
I
T

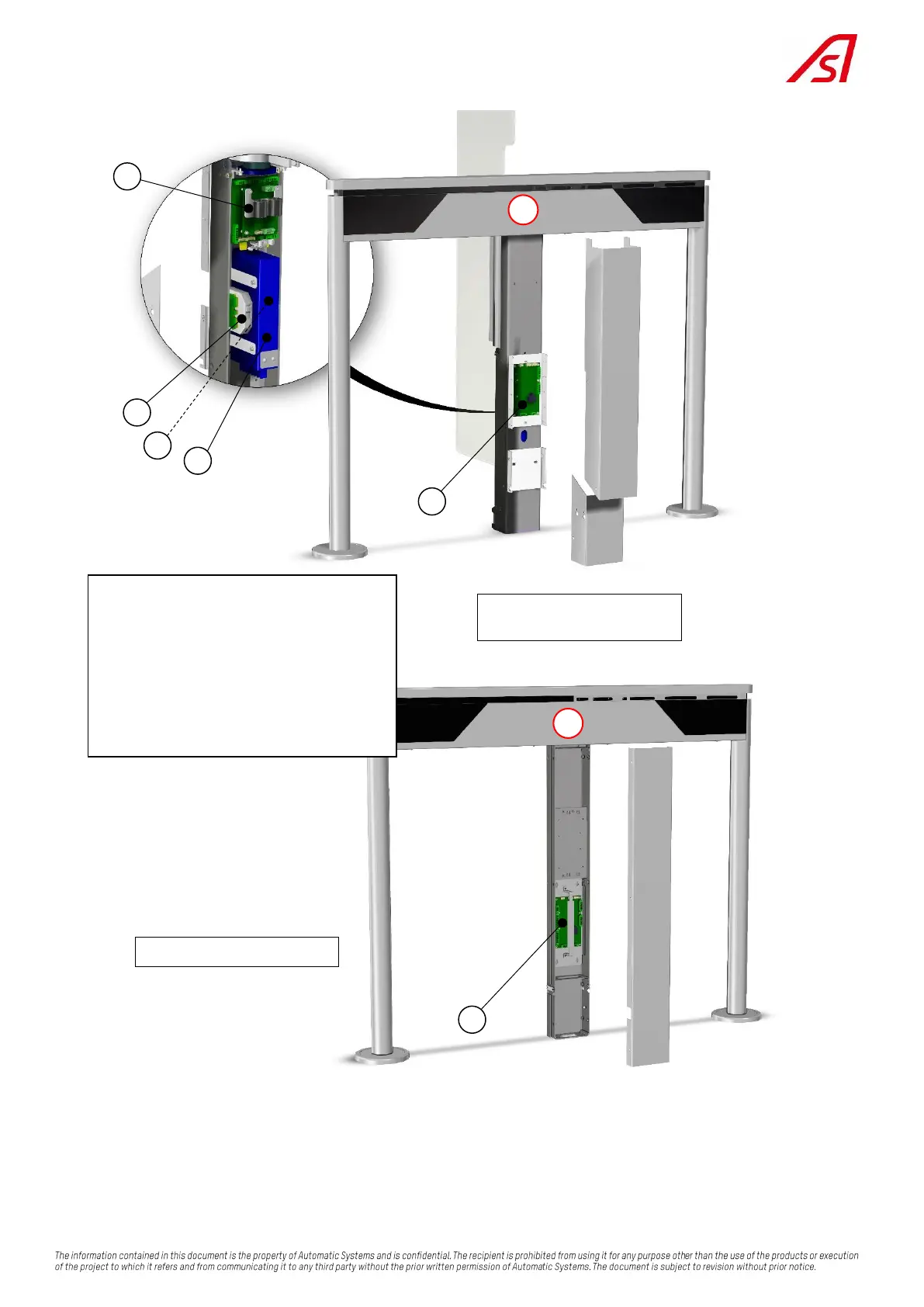

1. Left/Right swinging obstacle
2. Left/right moving cylinder (motorized)
3. Motor control circuit boards AS1185+AS1170.
4. Circuit board AS1172 (24VDC distribution)
5. Regulated power supply
6. Main switch
7. Input/Output Circuit Board AS1168
7
6
4
5
7
InLane Intermediate
kinematic post
InLane left railing
3
