Dominator Tempo & Syncro Instruction Manual ATS-3AM & ATS-2AM
7
© Copyright 2019

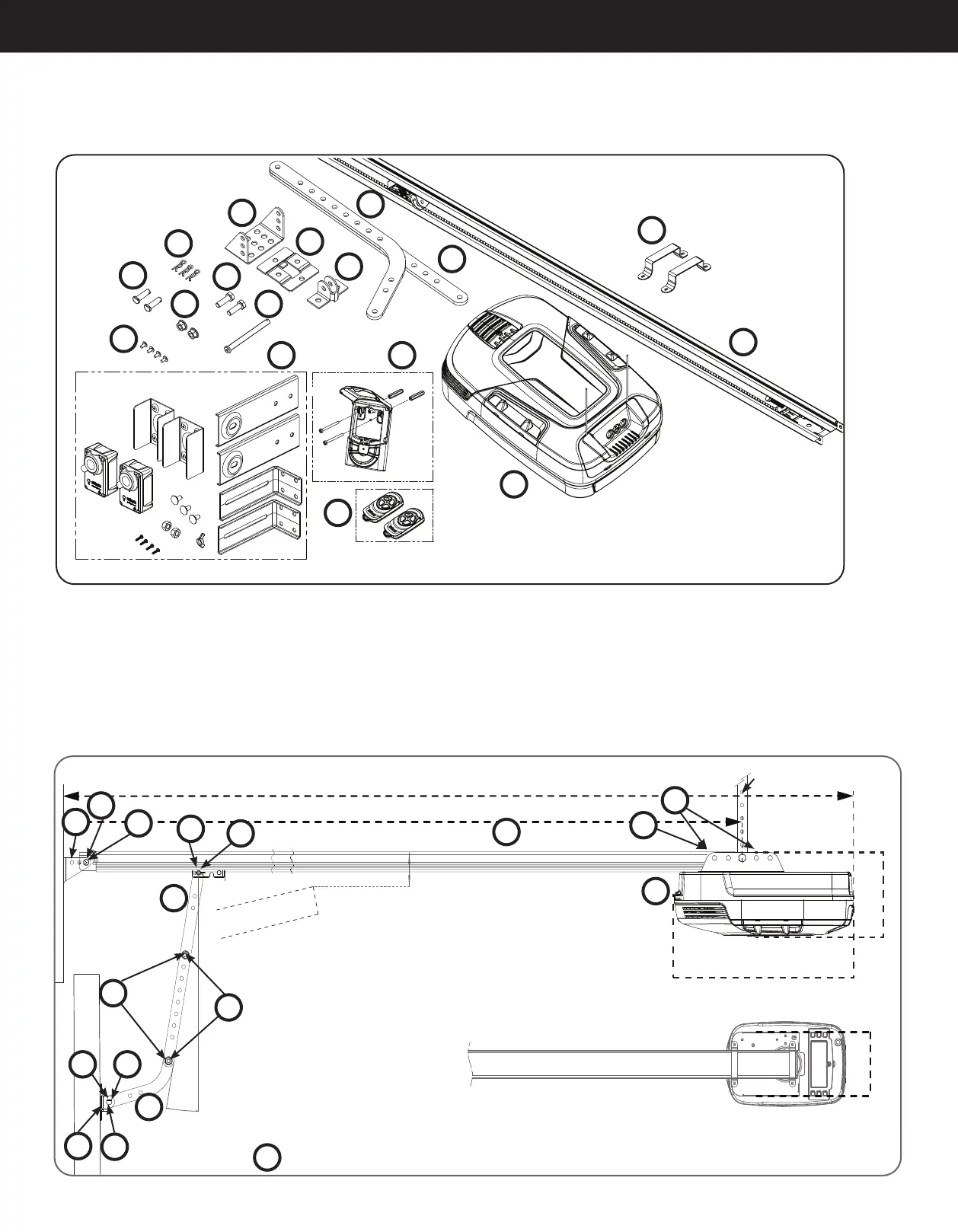

4. Kit Contents
1
NOTE: Chain/belt in one piece rail has been tensioned by the
factory. Do not adjust the tension of the chain/timing belt.
IMPORTANT NOTE: If modification to the track length
required, adjustment must be made only from power head end.
3
2
4
5
6
7
8
9
10
11
12
13
14
15
17
16
Fig.4.1
1. 1 x ATS drive unit
2. 1 x Wall mount transmitter kit
3. 2 x Transmitters and batteries
4. 1 x Bent arm door attachment
5. 1 x Straight arm door attachment
6. 1 x Wall bracket TS01
7. 1 x Door bracket Locator
8. 1 x Door bracket
9. 3 x Pin Snap SSP 8 ZNU 31080
10. 2 x Hex Head screw M8x25
11. 1 x Pin 0890
12. 2 x Clevis Pin 0829
13. 2 x Hex Serration flange nut M8
14. 4 x Hex flange screw taptite ‘S’ M4 x 10
15. 1 x Wired Safety Beam kit
PLUS
16. 2 x Track Bracket
17. 1 x Pre-Assembled C-Rail
10.00°
min
MINIMUM HEAD
ROOM FOR STEEL
RAIL 57mm
DOORS HIGHEST
POINT
Rail no Extension Kit 3156mm
Rail + 1 Extension Kit 3946mm
Rail + 2 Extension Kits 4736mm
* Rail refers to 3160 rail
170mm
3156mm*
3374mm
150mm
353mm
16
1
17
5
4
6
7
12
8
14
11
9
13
10
Perforated
Angle
129
9
15
Placed on both sides of door, 5”
above floor level
Fig.4.2
