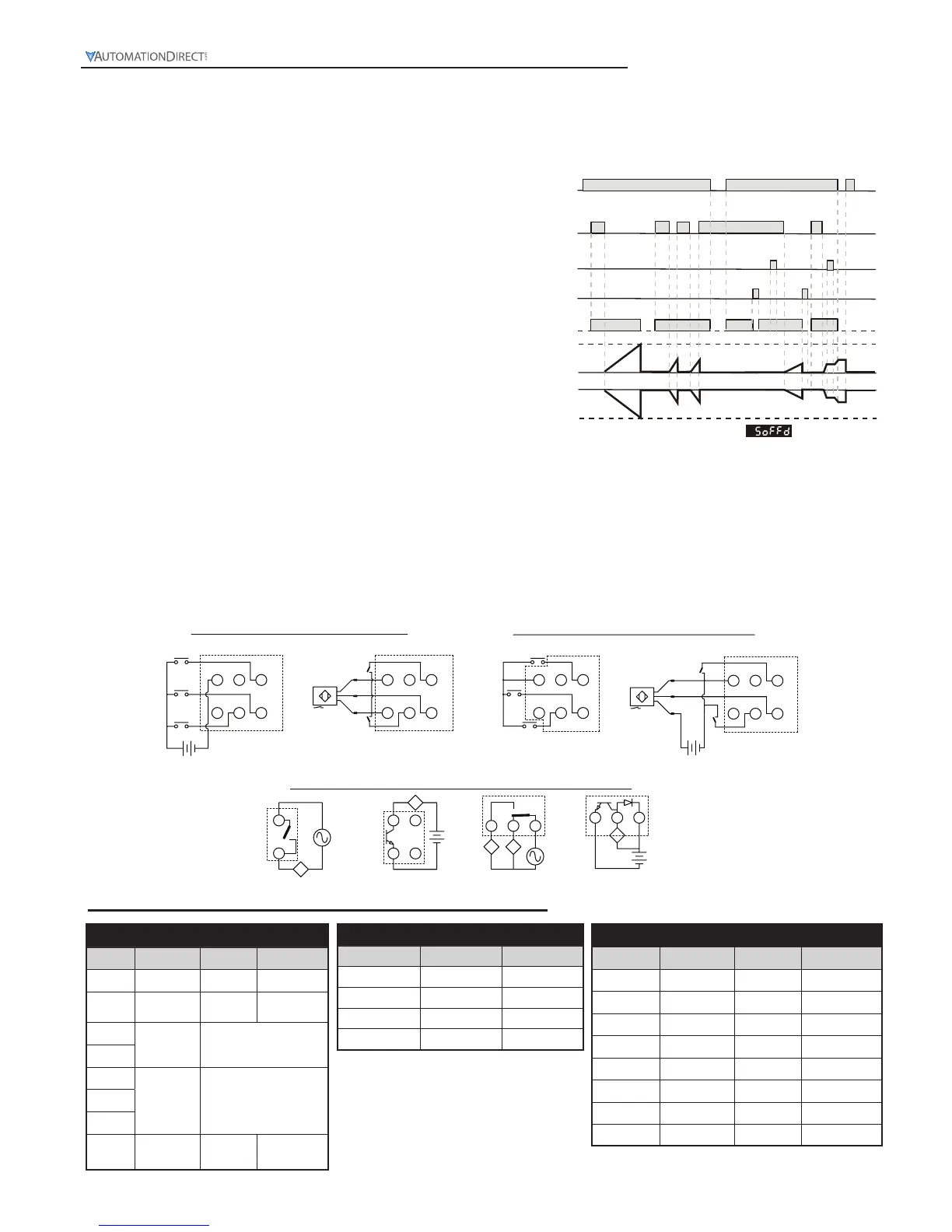

Signal Off Delay (
Soffd
)
With power applied to the CTT, the leading edge of
the input signal at START will immediately turn ON
the outputs. The trailing edge of the “start” signal will
begin the timing period setting value SV (timing up or
down based on parameter (
t modE
) or by DIP switch
2). At the end of the timing period both outputs will
turn OFF. The leading edge of a “start” signal applied
during a previously initiated timing period will reset the
timing period.
The leading edge of a “reset” input signal at RST1 will
turn OFF the outputs and reset the timing period. The
“reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
) or DIP Switch 8.
The leading edge of a “pause” input signal at GATE will
pause the timing period after it has been started. The
timing period will continue after the trailing edge of the
external switch “pause” (Gate) signal.
When power is removed, both outputs will turn OFF
and the timing period will be reset.
CTT Timer
Signal Off Delay
Power signal
Start signal
Pause signal
Reset
Output
signal
SV
0
Up
Down
SV
0
Signal Off Delay
Output Mode - Table 2
Switch 3 Switch 4 Output Mode
OFF OFF
Sond1
ON OFF
Sond2
OFF ON
Soffd
ON ON
Son
Dip Switch Settings - Table 1
Switch Function Off On
1 Dip switch Disabled Enabled
2 Timer mode
Counting
up
Counting
down
3
Output
mode
See Output Mode Table
- Table 2
4
5
Displayed
unit
See Display Units Table
- Table 3
6
7
8
Reset signal
pulse width
20 ms 1 ms
Display Units - Table 3
Switch 5 Switch 6 Switch 7 Display Units
OFF OFF OFF 0.01 sec.
ON OFF OFF 0.1 sec.
OFF ON OFF 1 sec.
ON ON OFF min., 0.01 sec.
OFF OFF ON min., 0.1 sec.
ON OFF ON 0.1 min.
OFF ON ON minute
ON ON ON hr., min., sec.
0V CP1
+12V RST1
RST2/
START
Start
Reset
PNP
INPUTS
0V CP1
+12V RST1
RST2/
START
Start
Reset
L-
L+
NPN
INPUTS
Outputs
Load
Load
OUT1
NPN/
SINKING
OUT2
SPDT
Load
OUT1
SPST
Load
OUT2
NPN/
SINKING
Load
+VDC
0VDC
+VDC
0VDC
0V CP1
CP2/
GATE (Pause)
+12V RST1
RST2/
START
Gate
Input
Start
Input
Reset
+VDC 0VDC
Externally Powered
(Optional)
Gate
Input(Optional)
Gate
Input(Optional)
0V CP1
+12V RST1
RST2/
START
Reset
L-
Start
Input
Gate
Input
L+
+VDC 0VDC
Externally Powered
(Optional)
Internally Powered
Internally Powered
876
131211
876
131211
Timer Wiring Examples
109
321
1514
10
15
321
876
131211
876
131211
CP2/
GATE (Pause)
CP2/
GATE (Pause)
CP2/
GATE (Pause)
DIP Switch Set Up of the CTT Parameters:
