Digital Counter / Timer / Tach User Manual, 1st Ed.
1-800-633-0405
3-14

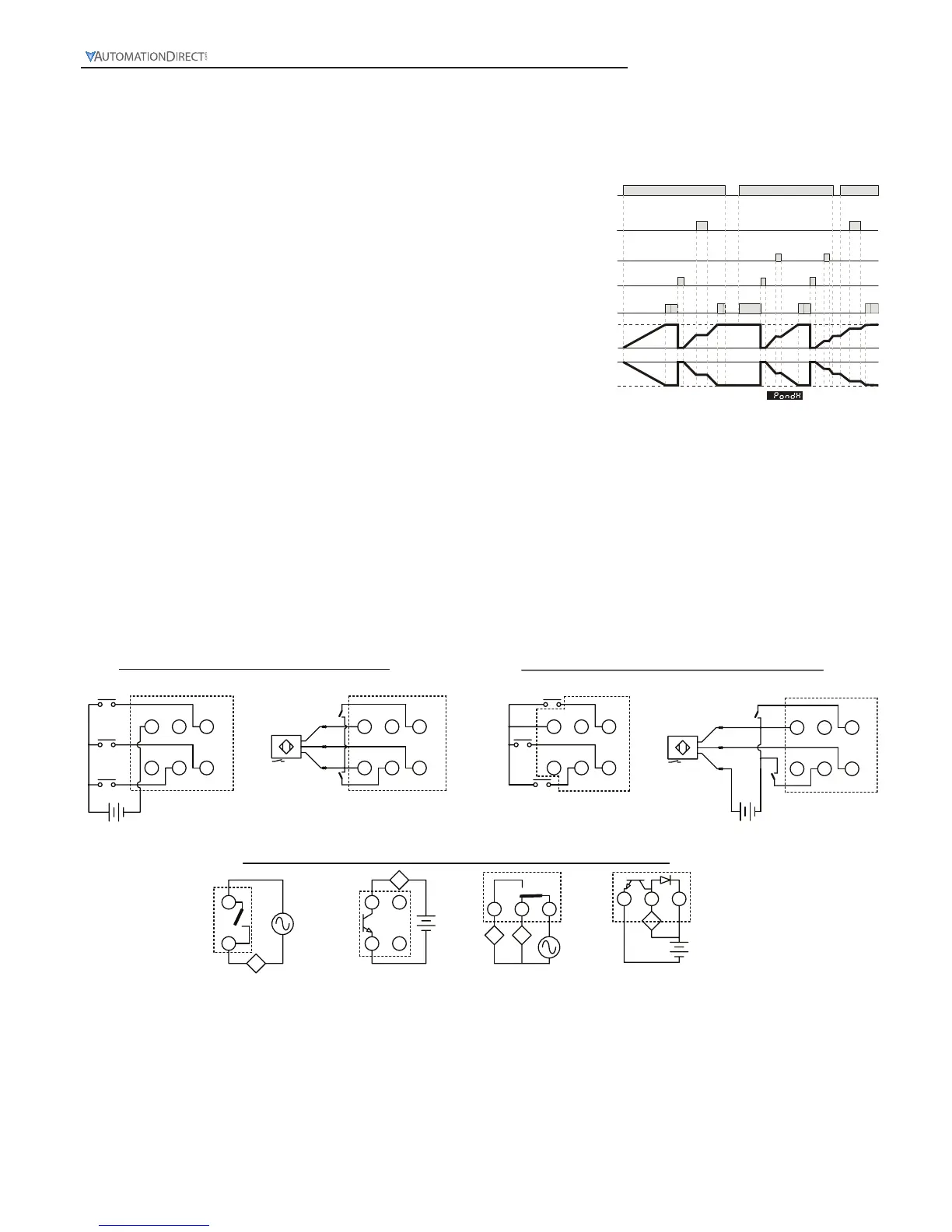

Power On Delay HOLD (
PondH
)
When power is applied to the CTT, the timing period setting
value SV will begin (timing up or down based on parameter
(
t modE
). At the end of the timing period both outputs will
turn ON momentarily for the time set in the output pulse width
parameter (
tout1
) or will be maintained ON if the output pulse
width parameter (
tout1
) is set to 0.00.
The leading edge of a “reset” input signal at RST1 will turn
OFF the outputs and reset the timing period. The “reset” signal
minimum pulse width is set by reset pulse width parameter
(
rtSr
).
The leading edge of a “pause” input signal at GATE or signal at
START will pause the timing period after it has been started. The
timing period will continue after the trailing edge of the “pause”
(Gate) or “start” signal.
When power is removed, both outputs will turn OFF. The last
state of the outputs and the last value of the current timing period
will be “stored” in eeprom when power is removed. When power
is reapplied the outputs will return to their last state and timing
will resume from the last value of the timing period.
CTT Timer
Power On Delay Hold
Power signal
Start signal
Pause signal
Reset
Output
signal
Up
Down
SV
SV
0
0
Power On Delay Hold
tt t
t
0V CP1
+12V RST1
RST2/
START
Start
Reset
PNP
INPUTS
0V CP1
+12V RST1
RST2/
START
Start
Reset
L-
L+
NPN
INPUTS
Outputs
Load
Load
OUT1
NPN/
SINKING
OUT2
SPDT
Load
OUT1
SPST
Load
OUT2
NPN/
SINKING
Load
+VDC
0VDC
+VDC
0VDC
0V CP1
CP2/
GATE (Pause)
+12V RST1
RST2/
START
Gate
Input
Start
Input
Reset
+VDC
0VDC
Ex
ternally Powered
(Optional)
Gate
Input(Optional)
Gate
Input(Optional)
0V CP1
+12V RST1
RST2/
START
Reset
L-
Start
Input
Gate
Input
L+
+VDC 0VDC
Externally Powered
(Optional)
Internally Powered
Internally Powered
876
131211
876
131211
Timer Wiring Examples
109
321
1514
10
15
321
876
131211
876
131211
CP2/
GATE (Pause)
CP2/
GATE (Pause)
CP2/
GATE (Pause)
