Automation Direct CTT-AN-A120 User Manual

Digital Counter / Timer / Tach User Manual, 1st Ed.
4-5
www.automationdirect.com

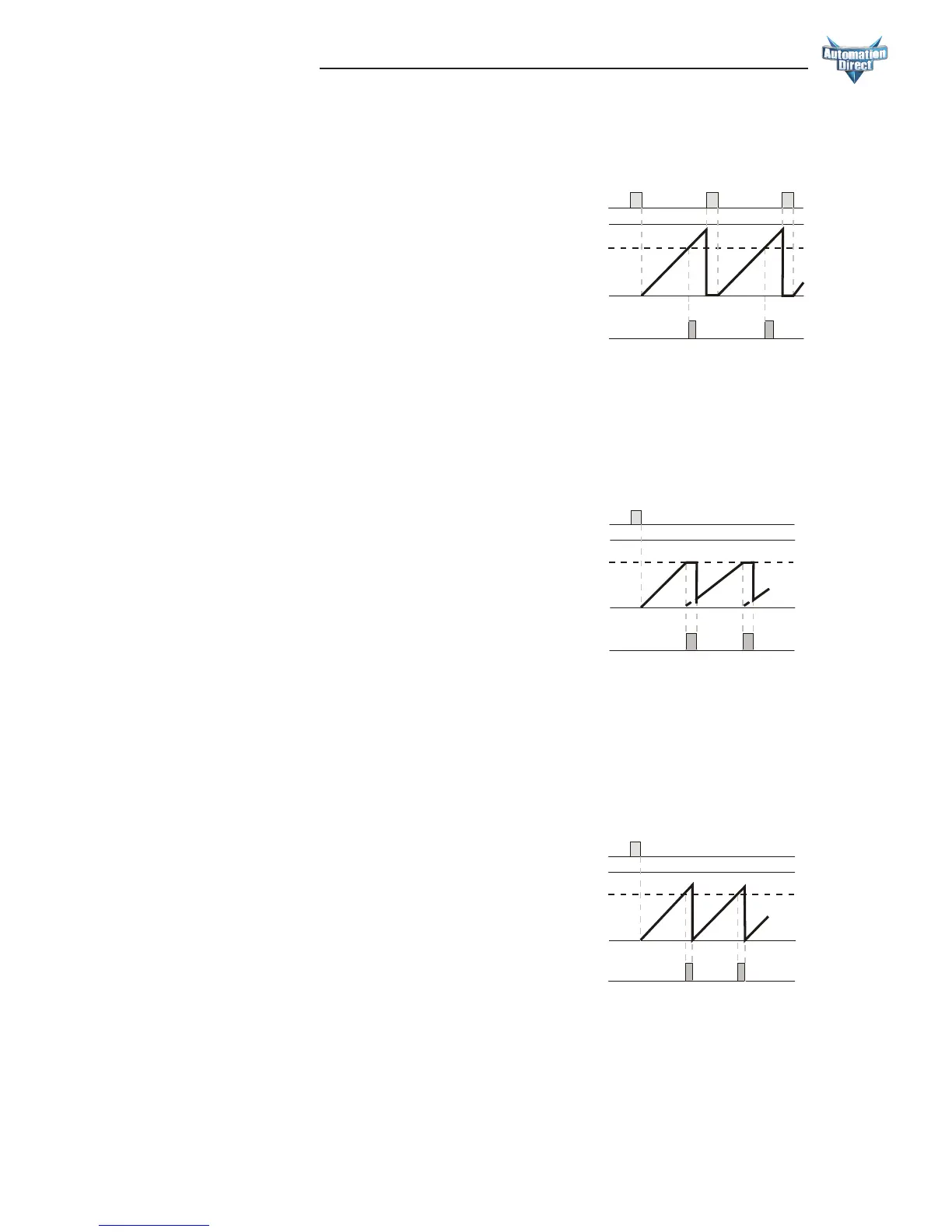

Mode K (
k
)
When the count present value PV counts up to the count setting
value SV2 Output 2 will turn ON momentarily for the time set
in the output pulse width parameter (
tout2
). The count PV
will continue to increment with each input signal.
The leading edge of a “reset” input signal at RST1 will turn
Output 2 OFF, reset the count PV to 0 and prohibit an input
signal from incrementing the count PV. The trailing edge of the
“reset” signal at RST1 enables counting to begin.
The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
).
RESET
999999
COUNT SV
2
COUNT PV
OUT2
T
T
TIMER + COUNTER
Counter Input Mode UP
Counter Output Mode K
0
Mode P (
P
)
When the count present value PV counts up to the count
setting value SV2 both Output 2 will turn ON momentarily
for the time set in the output pulse width parameter (
tout2
).
The count PV display is prohibited from incrementing until the
end of the output pulse time when Output 2 turns OFF and the
count PV is reset automatically to 0 and any input signals that
occurred during the output pulse time.
The leading edge of a “reset” input signal at RST1 will turn
Output 2 OFF, reset the count PV to 0 and prohibit an input
signal from incrementing the count PV.
The trailing edge of the “reset” signal at RST1 enables counting
to begin. The “reset” signal minimum pulse width is set by reset
pulse width parameter (
rtSr
).
OUT2
TIMER + COUNTER
Counter Input Mode UP
Counter Output Mode P
TT
RESET
999999
COUNT SV
2
COUNT PV
0
Mode Q (
q
)
When the count present value PV counts up to the count setting
value SV2 Output 2 will turn ON momentarily for the time set
in the output pulse width parameter (
tout2
). The count PV
will continue to increment with each input signal until the end
of the output pulse time when Output 2 turns OFF and the
count PV is reset automatically to 0.
The leading edge of a “reset” input signal at RST1 will turn
Output 2 OFF, reset the count PV to 0 and prohibit an input
signal from incrementing the count PV. The trailing edge of the
“reset” signal at RST1 enables counting to begin.
The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
).
OUT2
TT
TIMER + COUNTER
Counter Input Mode UP
Counter Output Mode Q
RESET
999999
COUNT SV
2
COUNT PV
0
