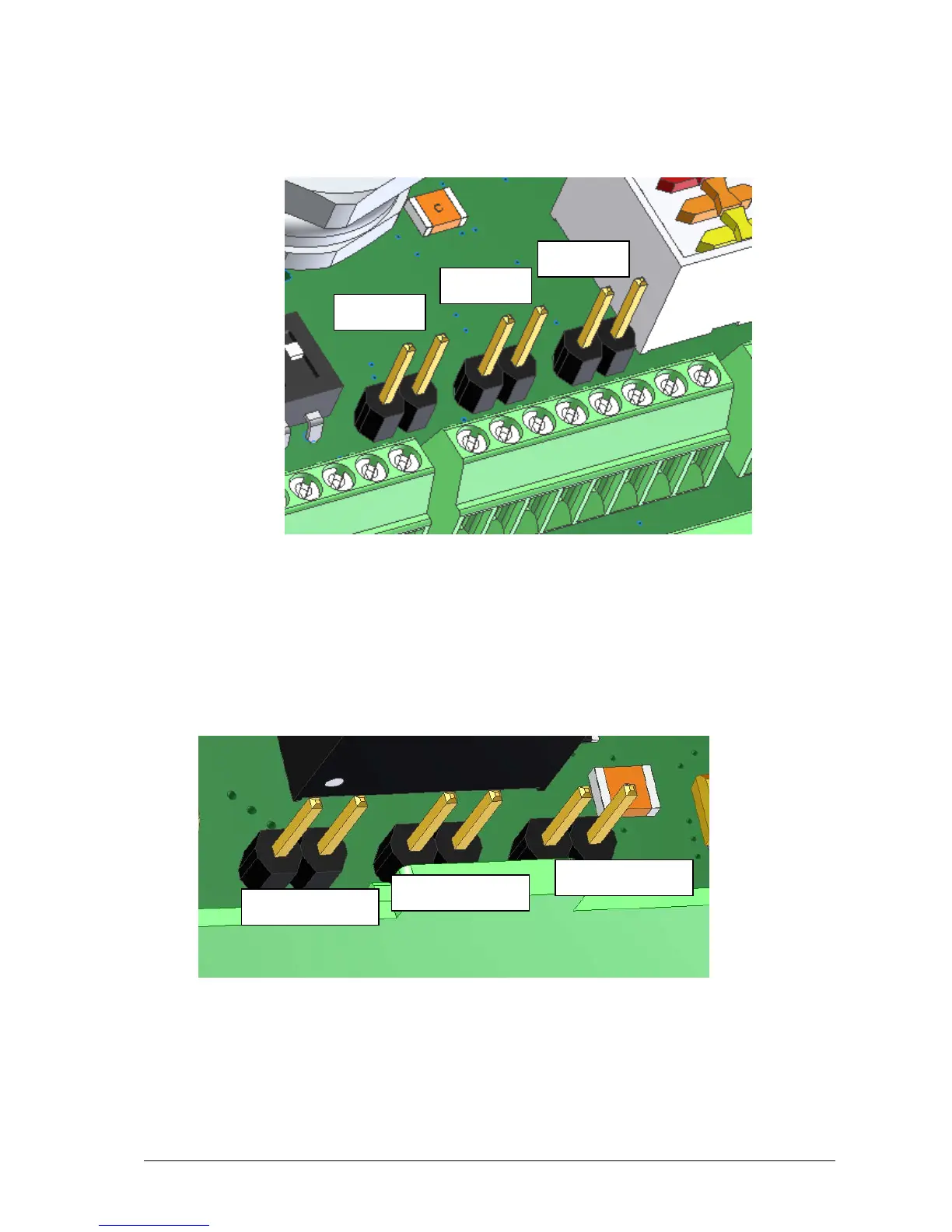

- In addition when using single-ended encoders of HTL type the jumpers HTLs_A, HTLs_B
and HTLs_Z must be set:
- The isolated digital outputs of C2-I/O-panel can be operated either with TTL level or with
higher voltage (9 – 24V DC). In the latter case an external voltage supply must be
connected to clamp J400/2 (PWR_IO) and J400/1(GND_IO) or the main voltage supply
of the camera can be used by setting the jumpers “GND->GND_IO” and “VCC-
>VCC_IO”:
- The jumper “GND->SHIELD” may be set in order to let the camera ground be connected
to the shield
GND->GND_IO
VCC->VCC_IO
GND->SHIELD
HTLs_A
HTLs_B
HTLs_Z
