62 • C2-2040(HS)-GigE Camera Hardware Reference Manual Rev. 1.8

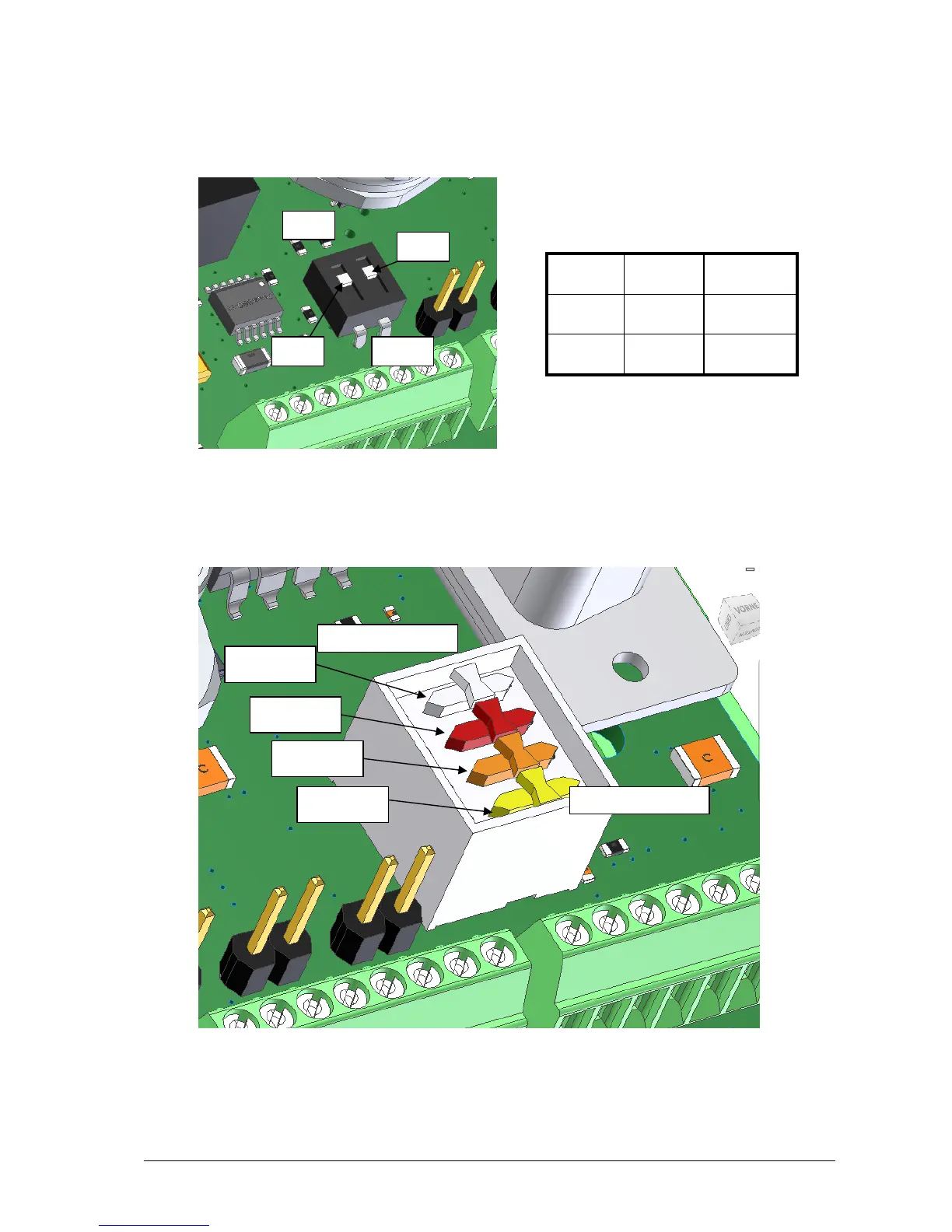

- the isolated inputs of the C2-I/O panel Rev. 2.0 can be operated both with 5V and 24V
DC signals. The voltage level can be set over the DIP switch S400:
- the panel features a 1A fuse for camera protection
- the type of encoder signal (differential or single-ended) can be set over the DIP switch
S300:
S400 IN1 IN2
ON
5V 5V
OFF
24V 24V
Track A
Track B
Track Z
n.c.
IN1
IN2
ON
Differential
Sin
g
le-Ended
OFF
