Autonics CT6Y-1P series User Manual

7 Counter Mode
© Copyright Reserved Autonics Co., Ltd. 51
7.4 Counter operation for indicator model
※Only for indicator model.
Indication
mode
[
DSpM
]

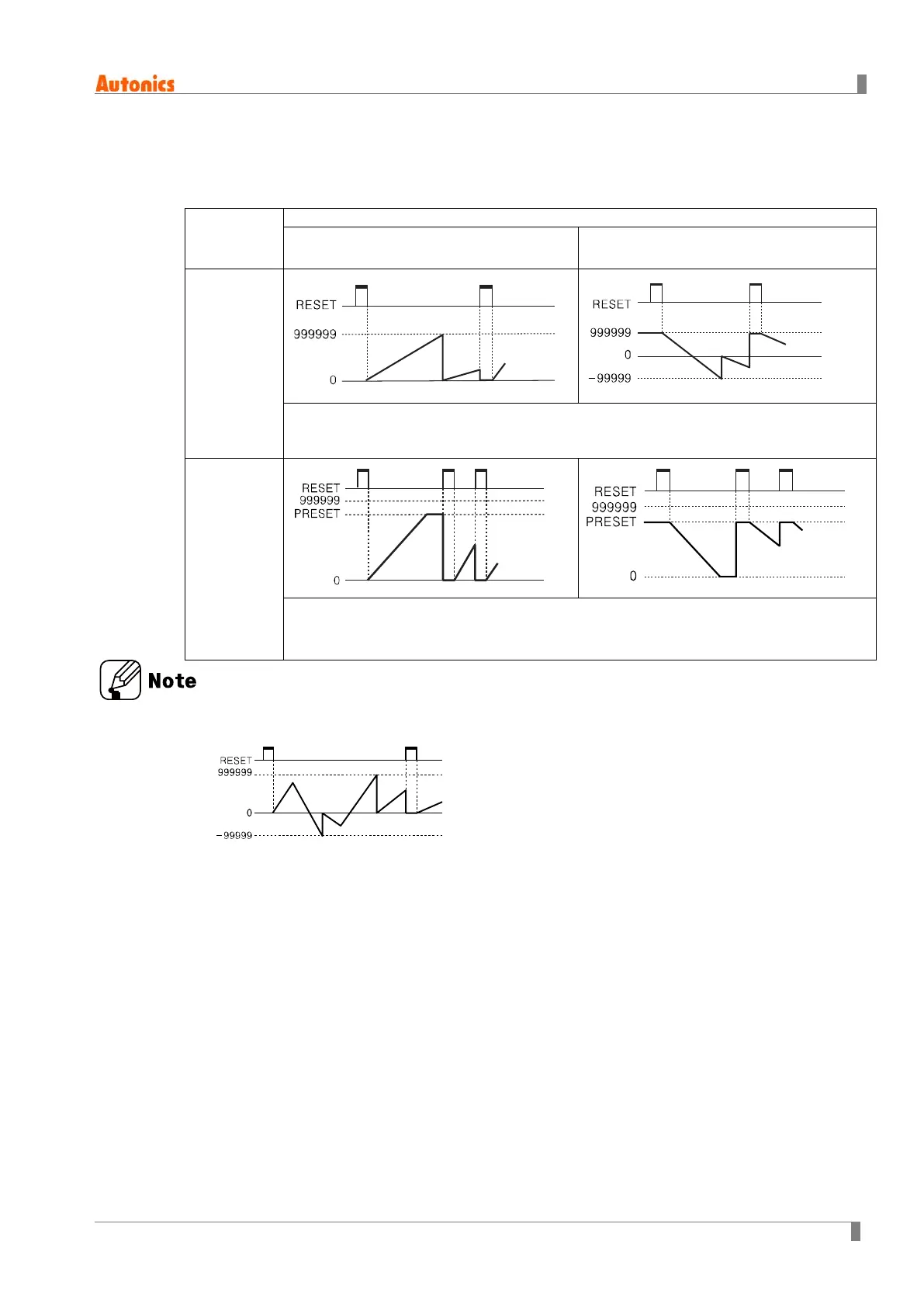

Counting chart
Up input mode
(Up, Up-1, Up-2)
Down input mode
(Down, Down-1, Down-2)
TOTAL
[TOTAL]
Count value increases or decreases until RESET input is applied.
When input is over max./min. counting value, it displays 0. When Reset input is applied,
it displays 0(Up)/999999(Down).
HOLD
[HOLD]
Count value increases or decreases until RESET input is applied. When input is
reaching setting value(Up)/0(Down), the display value is hold. When Reset
input is
applied, it displays 0(Up)/setting value(Down).
※When the command input [UD-A], individual input [UD-B], phase difference input [UD-C] mode,
※In case of UP/DOWN [UD-A, UD-B, UD-C] input mode, indication mode [DSpM] parameter
does not appear.
