Select the top oil inlet connector from the accessories and
install it into the oil separator.
Install the fuel injector in the forward direction (apply a little
grease on the “O” ring of the fuel injector)
Put the horizontal end of the oil separator and the fuel injector
on the upper plate seat, and tighten the two ends with the
locking rod. Ready to test.
●
●
●
Methods And Steps
02 Idle Speed Test
Confirm that the injector to be tested has been installed
properly and the signal wire has been plugged in.
Select “02 Idle Speed Test”.
Press the function setting key to set the working time and pulse
width.
Press the start button to start work.
●
●
●
●
Lock nut7 Lock pole8
Oil outlet pipe
Top oil inlet connector
1
3
Oil rail
Injectors
2
4
Glass measuring cylinder
6
Upper plate seat
5

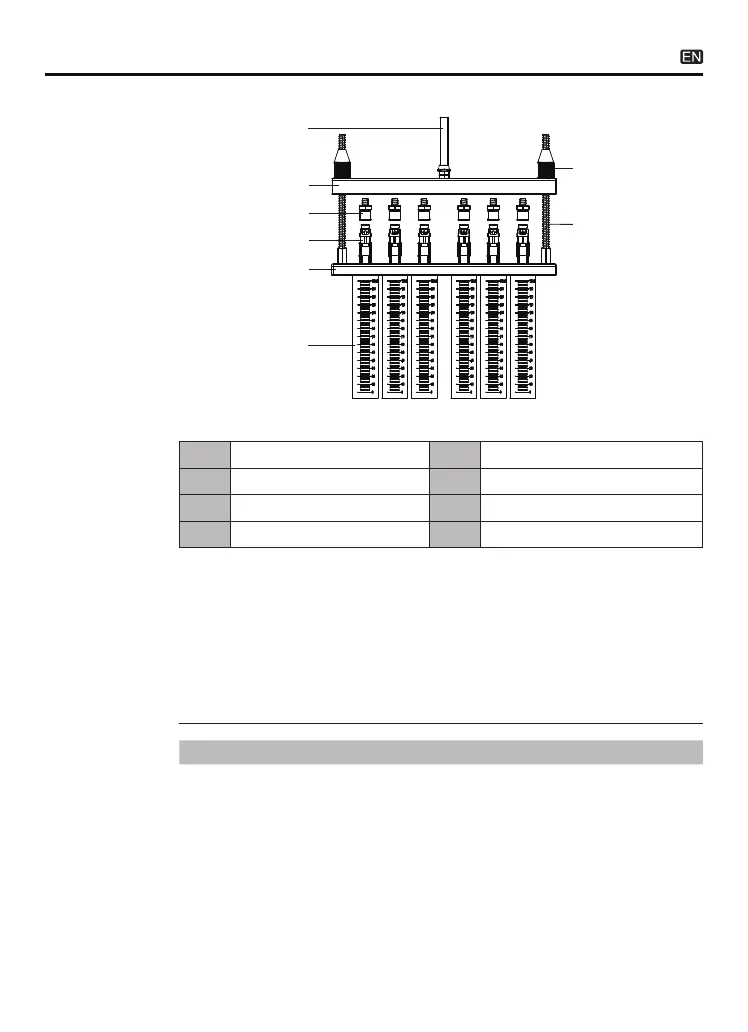

Top-in fuel injector installation diagram
①
②
③
④
⑤
⑥
⑦
⑧
