- 3 -

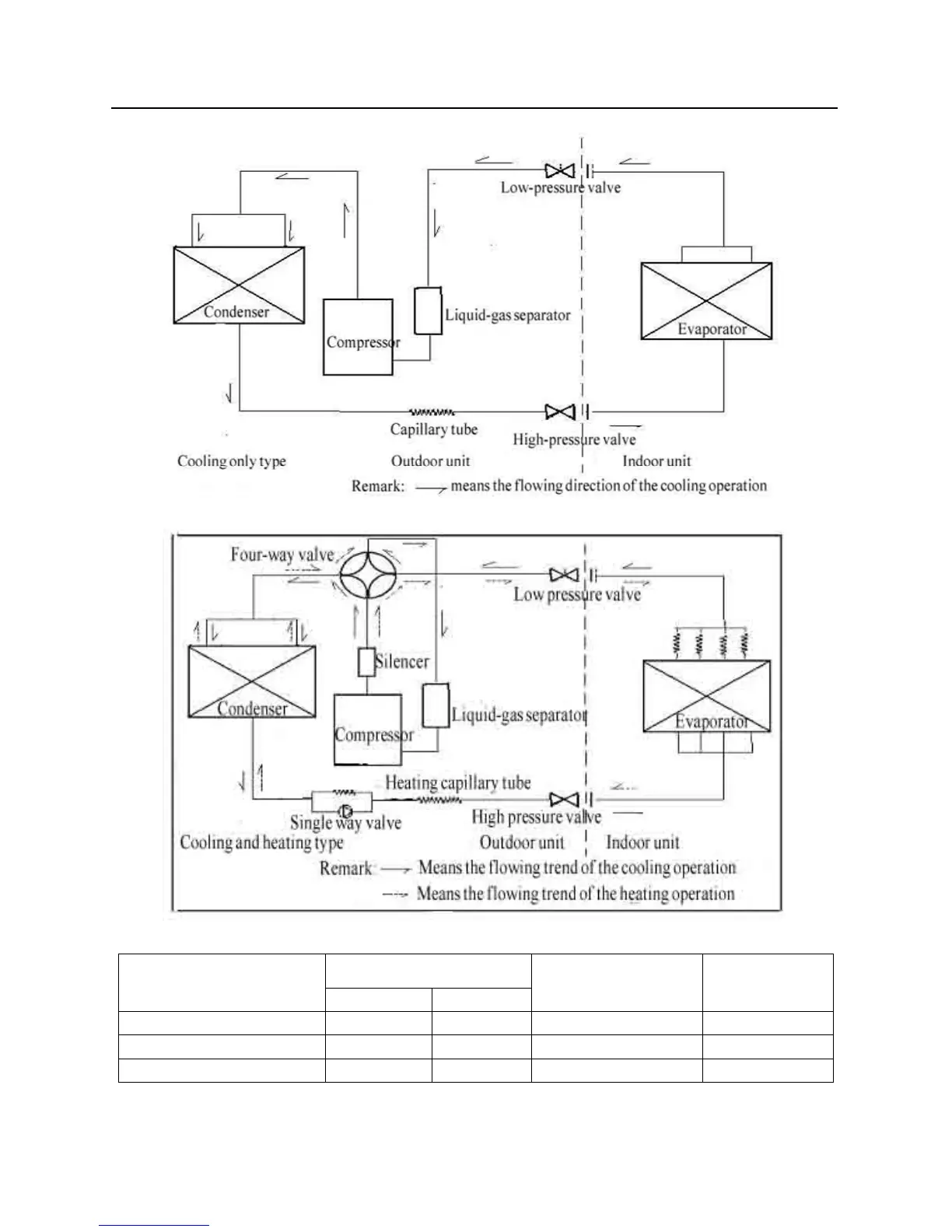

Refrigeration Cycle Diagram
Pipe size (Diameter: Ø)
MODEL
Liquid(inch) Gas(inch)
Max. Piping Length
(m)
Max. Elevation
(m)
9K,12K BTU Series 1/4 3/8 15 3-4
18K BTU Series 1/4 1/2 20 5
24K BTU Series 3/8 5/8 25 5.5
