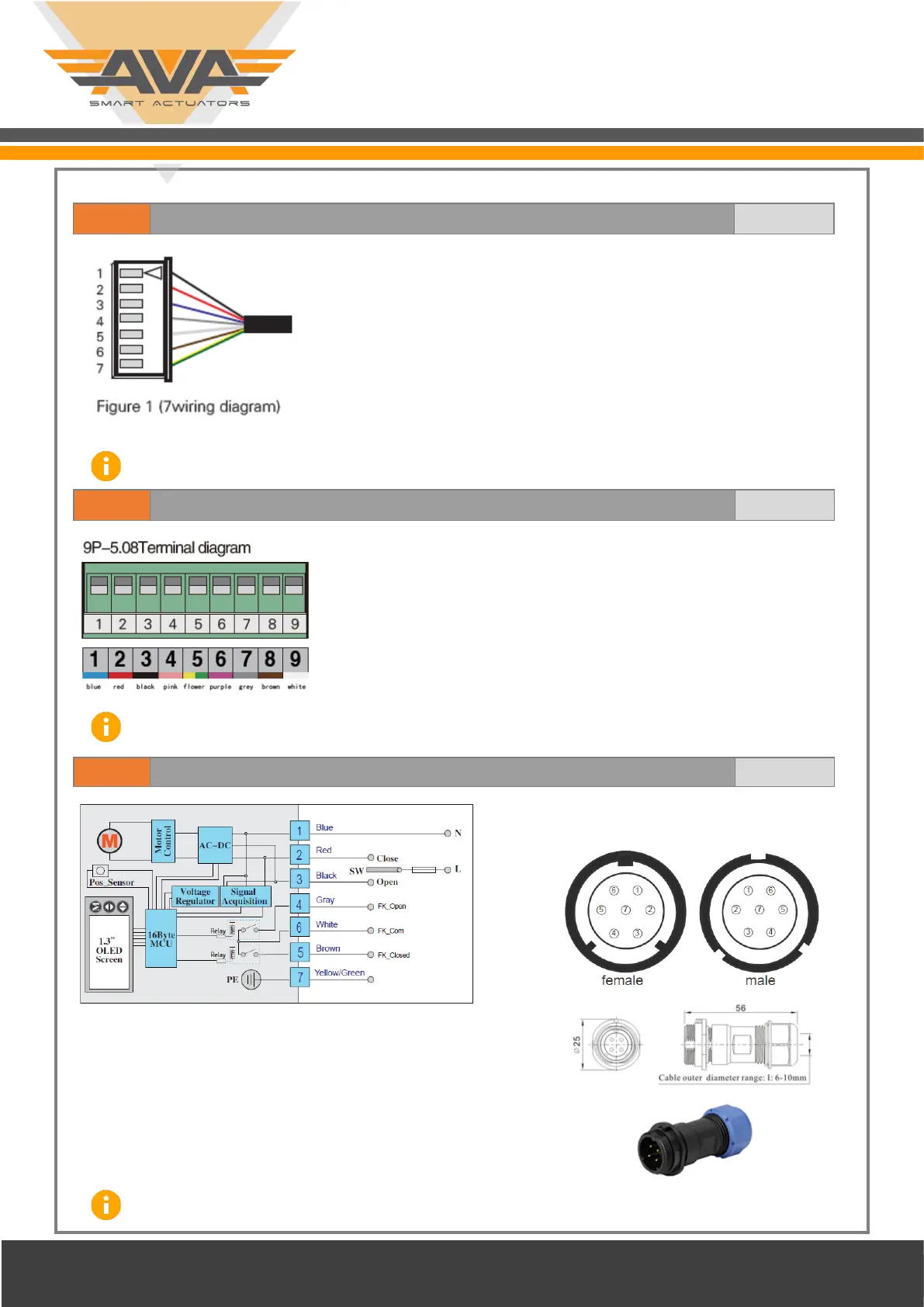

AVA 200 Series Wiring
PRE WIRED ACTUATORS:-
Due to the compact design of our actuators, our Series 10, 20 and 50 have pre
wired, typically 0.8m long cables that contain your power, feedback and
earthing cores. Unless ed with a special opon, such as Alarm Relays, the
actuators are supplied with a 7 pin connector. This can be removed if not
required or to be ulised. This does NOT invalidate the warranty or eect the
actuator. Flying lead can be from 1m to 20m. Speak to our team about your
requirement.
WIRING SERIES 10, 20 AND 50 PRE WIRED ACTUATORS WIRING
WIRING SERIES 80-110 AND 200 –400 WIRING BOX ACTUATORS WIRING
WIRING BOX - TERMINAL STRIP ACTUATORS:-
Our larger actuators have 2 x M20 Conduit Glands on the back of the actuator.
The wiring box is removed from the actuator base which will expose the
terminal strip for you to terminate your cables. This will be typically a 9 pin
terminal design to allow for addional cores for Alarm Relays. Refer to manual
for Fuse requirements. Feedback signal contact load capacity 0.1A/250VAC
0.5A/30VDC.
WIRING SERIES 20-400 AVIATION PLUG IP68 CONNECTOR OPTION WIRING
WIRING BOX - ’AVAIATION PLUG’ IP68 OPTION:-
Our inline connectors oer a plug and play weather proof connector.
This is becoming more popular for customers looking to remove the
need to install a juncon box between the actuator and panel. This IP68
weatherproof connector is an ideal choice for external applicaons.
Speak to our sales team today about opons on this connector type.
Revision: 002 Date: 05/06/20
Note that the 20 Series 7 core cables are 16 wire Gauge as standard and our 50 series is 12 wire Gauge as standard.
Note that the 80-110 and 200-400 terminal strip is designed to accept 12 wire Gauge cables. We can supply prewired if required.
Note the ’Aviaon Plug’ is a special execuon on request at this me. Speak to your reseller for more informaon.
