Quad • Mounting guide | 10
In-ceiling mount
2 3

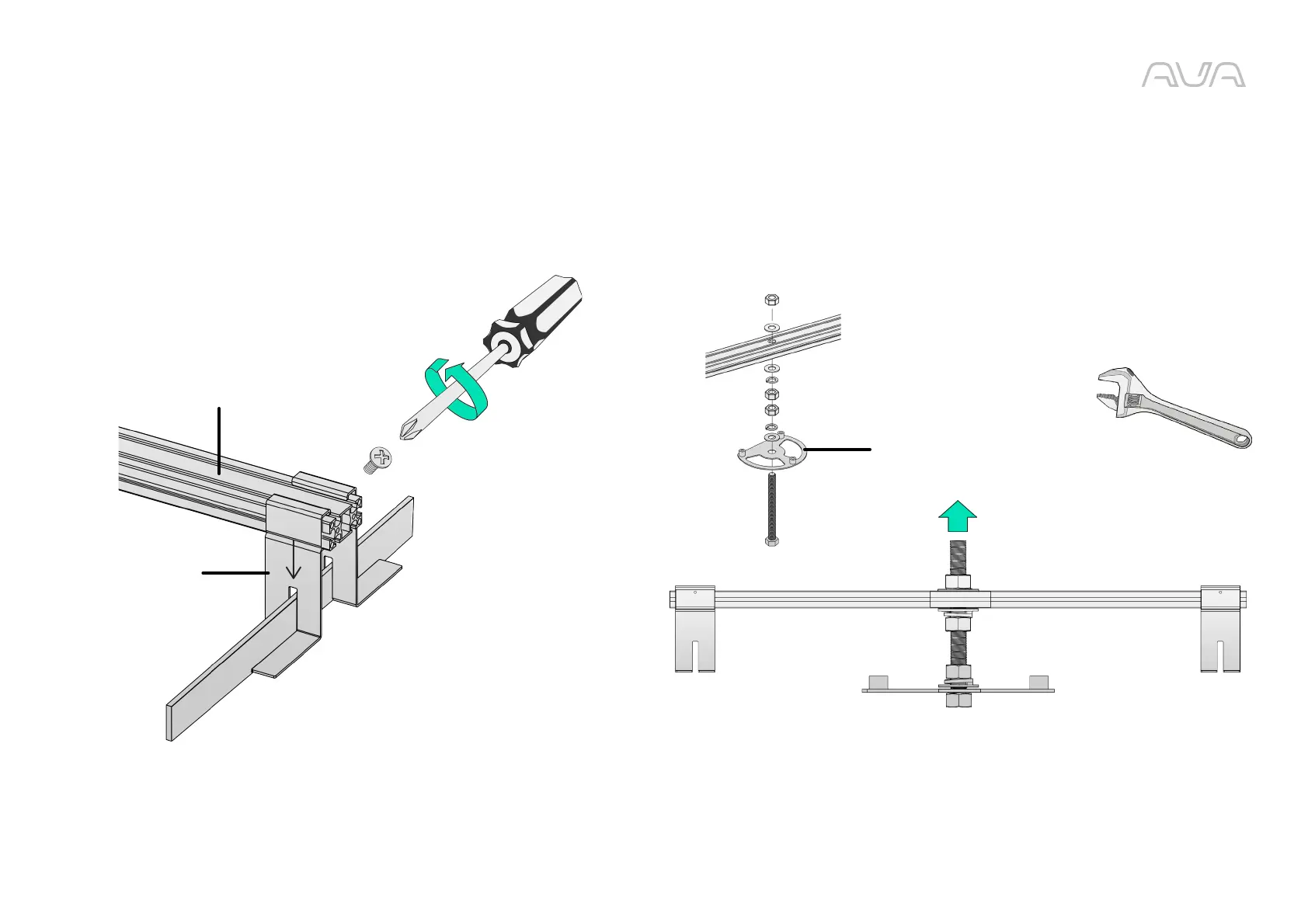

Remove the assembly from the ceiling and assemble the adapter plate to the bracket rod.
Use nuts, washers and lock washers as shown, tighten the nut towards the adapter plate and
make sure the two nuts close to the bracket rod are loose.
Assemble the bracket stand to the bracket rod, adjust the width so the stands are resting on the
secondary keels. Secure the position by the two lathead screws.
Adapter plate
Bracket rod
Bracket stand
