Quad • Mounting guide | 12
Pendant mount
1 2 3

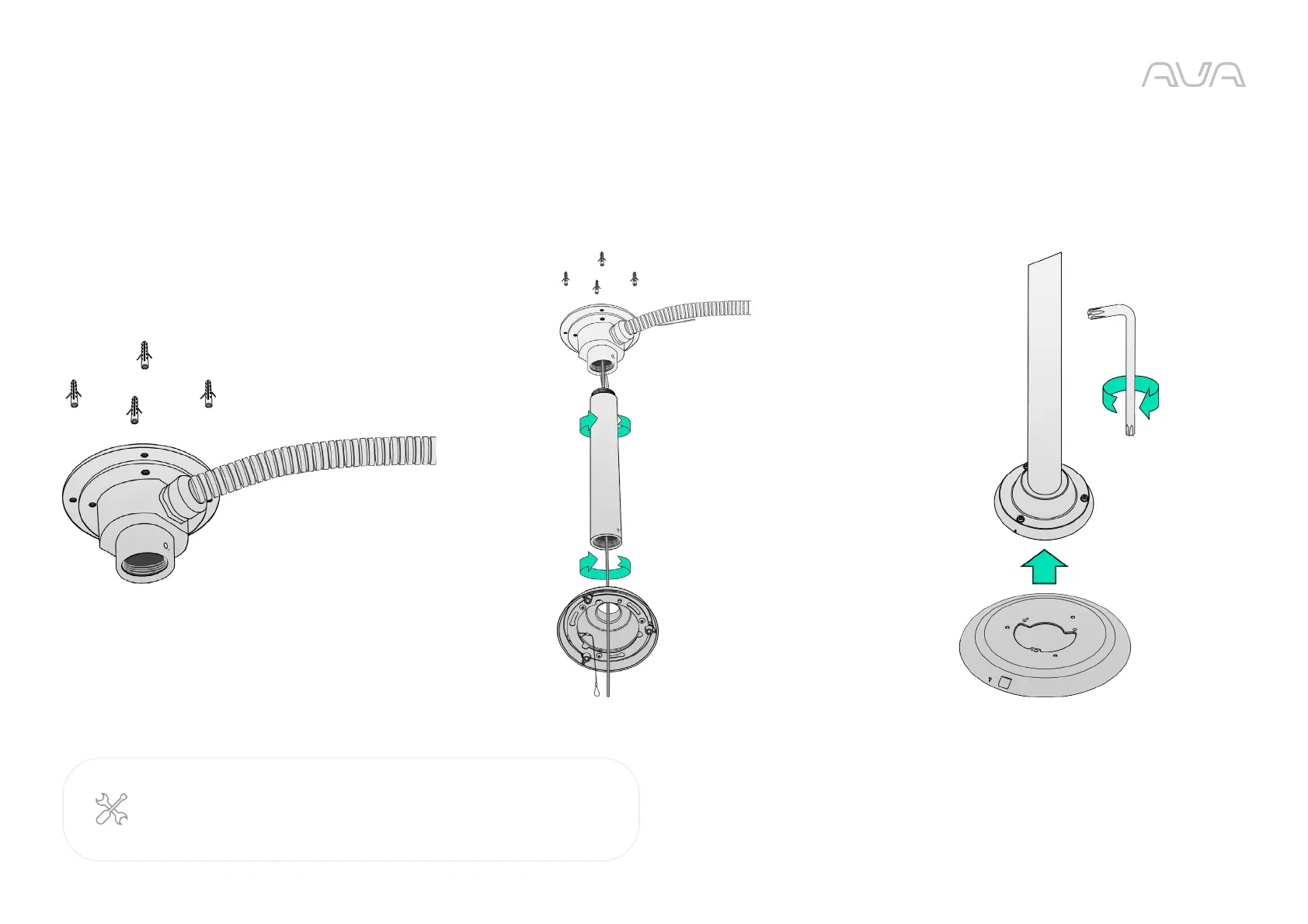

Use the alignment sticker and drill four holes. Fit the pendant
head and mount it with the screws.
Install the pendant pipe and secure with the upper hex screw,
install the mounting adapter and secure it with the lower hex screw.
Install the top mounting plate.
Note the front indicators indicate the default front side of the
camera. Install the mounting plate with the orientation you prefer.
Required:
ACQ-PEN-HEA Pendant head
ACQ-PEN-PIP Pendant pipe 40cm
ACQ-MNT-ADA Mounting adapter
