Instructions and user manual ChloriProtect NOT004ENV05
6
3.4.2 Connection of the cordon of supply of the electrolyser on the connector
The cordon of food of a salt chlorinator is connected to ChloriProtect thanks to the connector E supplied in
the kit.
4.0 COMMISSIONING AND OPERATION
4.1 Power-on
In the switched on of the device or after the ignition of the device by support on the sideline "ON/OFF", a
wait of 15 min is programmed to wait for the stabilization of the measure. During this phase, the device
posts alternately the redox value mV and "OFF".
4.2 Turning ON and OFF the device
When the device is on, a quick press on the « ON/OFF » button
turns off the device.
Alike, when the device is off, « OFF » is displayed. A quick press
on the « ON/OFF » button turns on the device. The device will
start after 15 minutes.

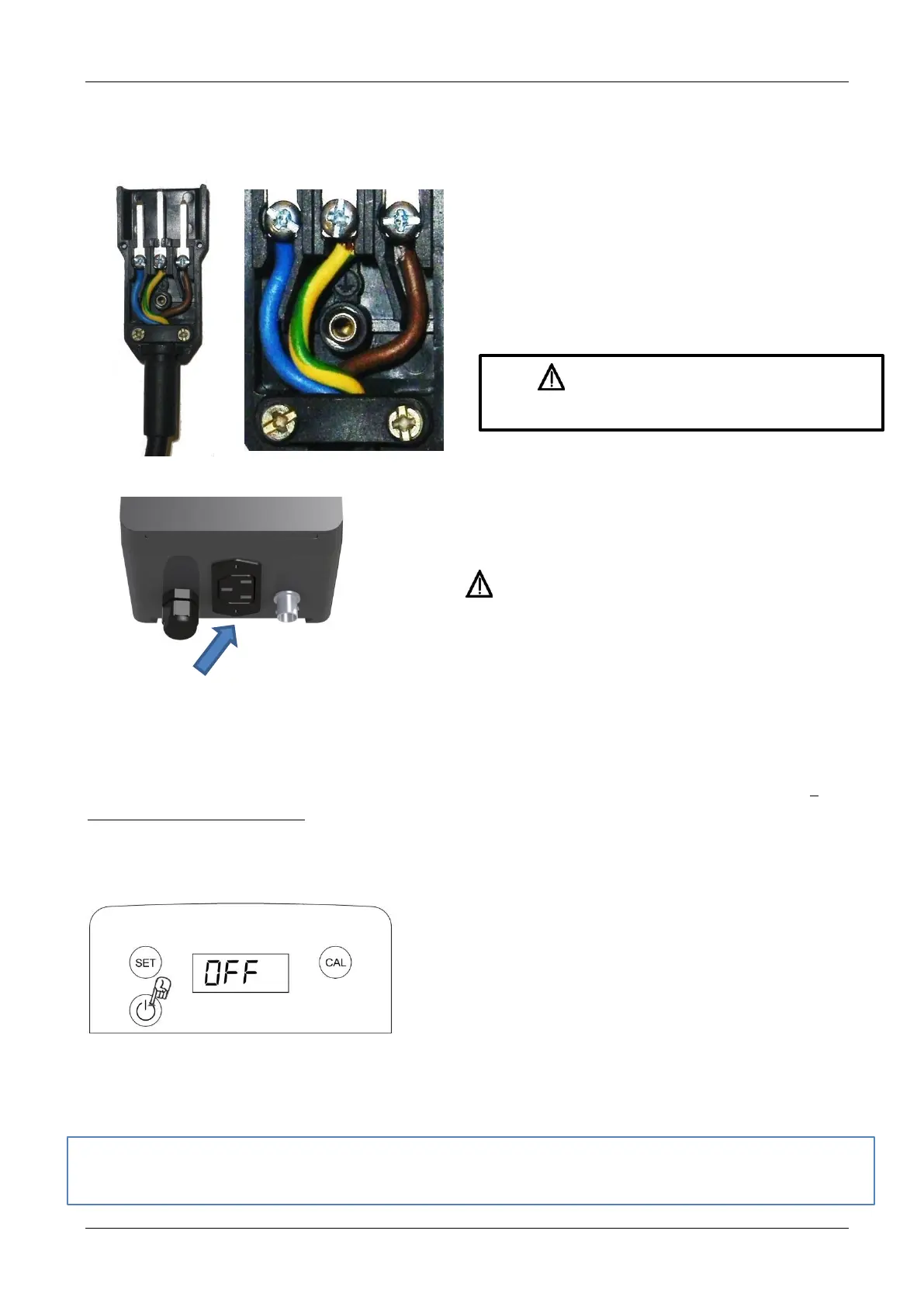

- Remove the sheath from the cable on 30 mm
- Strip the 3 wires to obtain 7 mm of copper
- Insert the wires like on the left picture:
- Blue to the left (letter N)
- Yellow / green in the center
- Brown to the right (letter L)
Be sure to clear the central hole to avoid
pinching a wire when closing the connector
Fig. 9
Fig. 10
The auxiliary plug is connected to the connector on the
back of the unit to the dedicated socket.
Max power 700 W
Protected by fuse (5x20mm) F3.15 250V
The putting into service of ChloriProtect is ended, it is from now on ready to check the salt water
chlorinator
of your swimming pool.
