2. Description of pump
The POOLeasy pH is characterised by its capacity to measure the pH value (between pH 0 and 14) thanks to
its sensor placed in a filtration circuit that analyses your pool's water.
As a function of the value measured, the POOLeasy PH injects, using its dosing pump, the quantity of
reagent necessary to maintain pool water balance.
The POOLeasy PH operates in acid (pH-) or alkali (pH+) dosing mode, depending on its configuration.
2.1 Description of parts

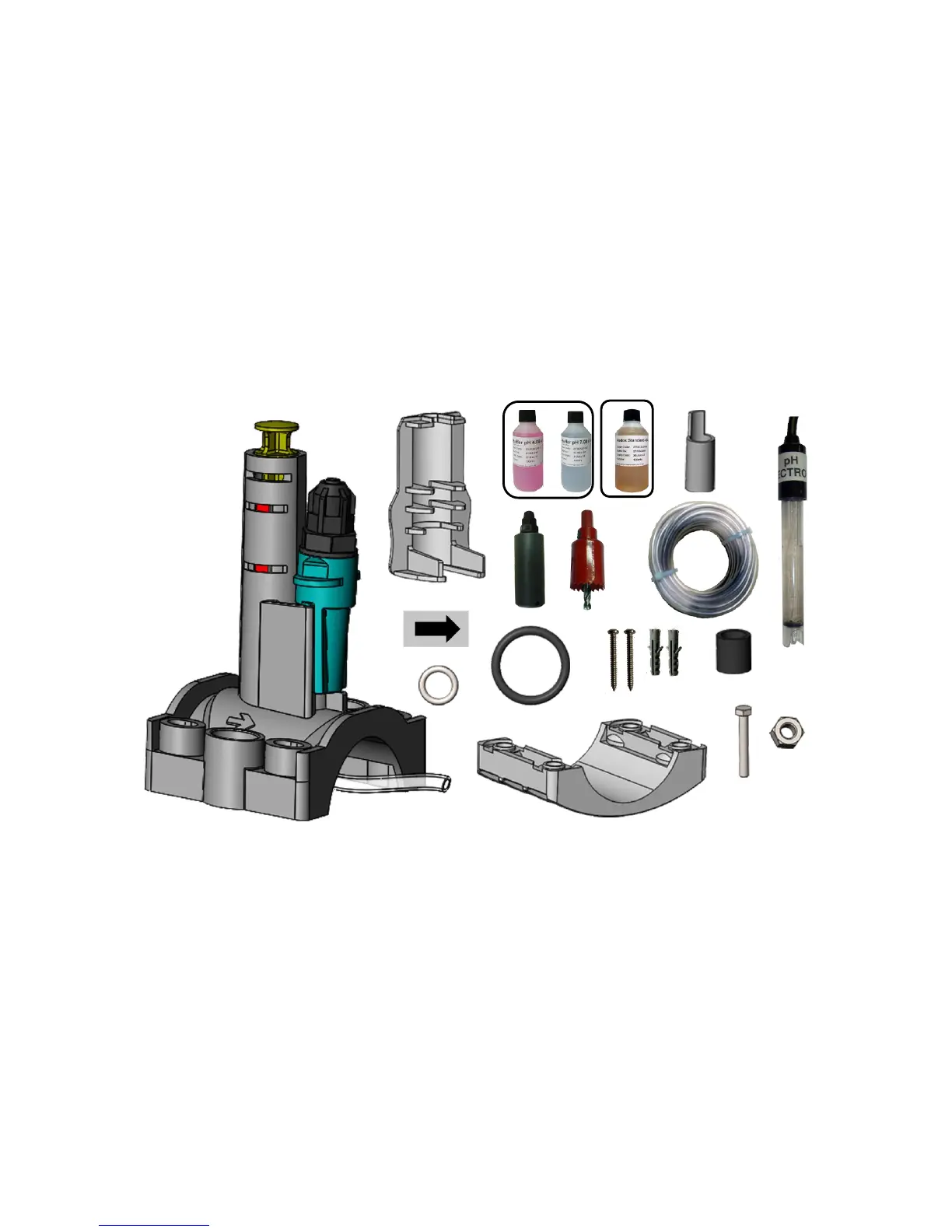

The complete list of accessories delivered with the equipment is given below. All the parts will be
necessary for the correct operation of your unit.
A1 : pH4 / pH7 calibration solutions (pH kit)
A2 : 475mV calibration solution (redox kit)
B : Probe holder
C : Guide collar
D : Clip
E : Foot strainer
F : Bit
G : Probe’s o-ring (x2)
H : Probe holder’s o-ring
I : 4x6 PVC tube (4m)
J : pH or redox probe
K : Probe holder’s screw (x4)
L : Probe holder’s nut (x4)
M : Wall mounting screw (x2)
N : Wall mounting plug (x2)
O : Spacers for Ø63 pipe (x4)
P : Spacer for long probe (120mm.)
Q : Water direction flux arrow
A1
A2
B
D
E
F
G
H
I
J
K
L
M
N
O
P
C
Q
