Clearance Requirements

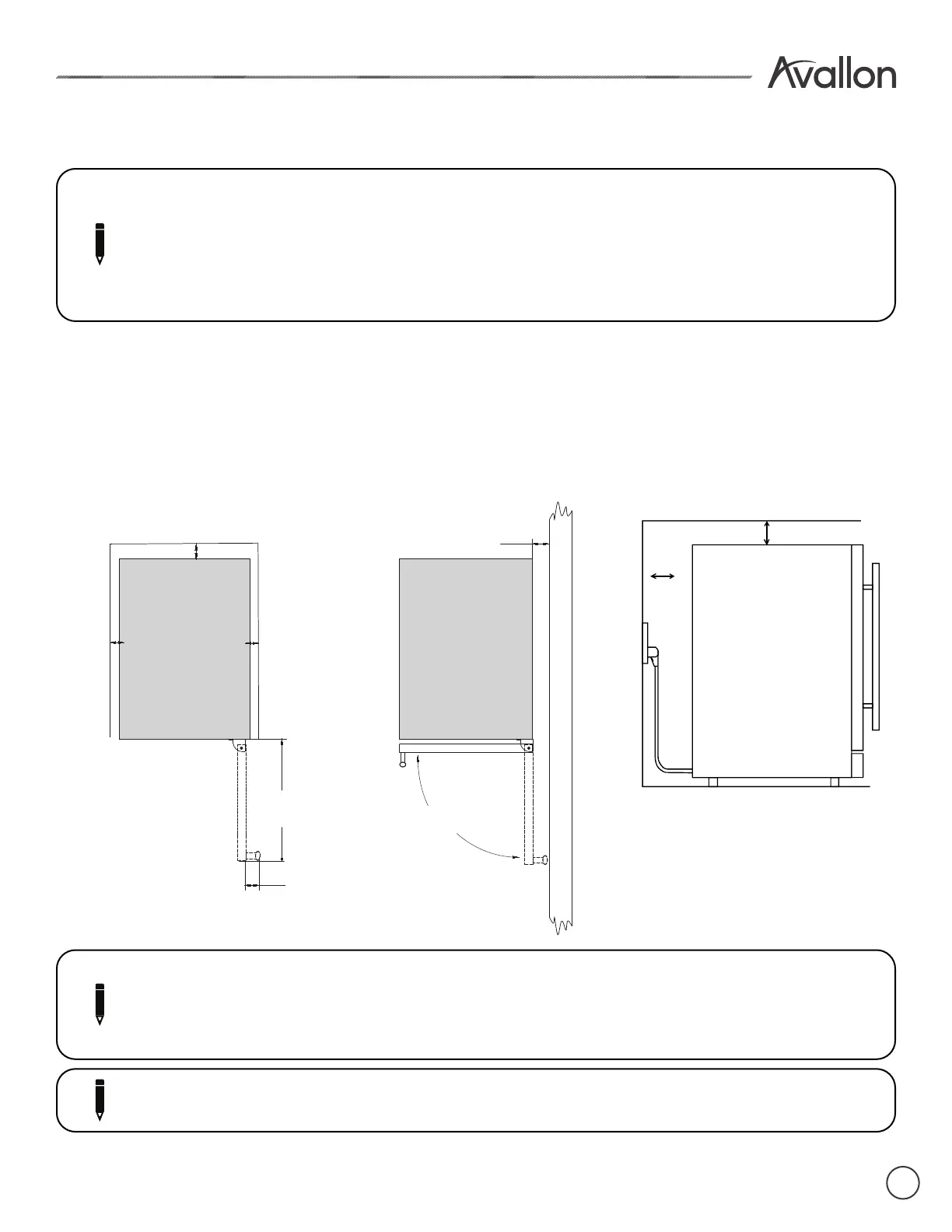

When installing the refrigerator under a counter, follow the recommended spacing dimensions shown.
To ensure proper service access and venlaon, allow at least 1-2” of clearance at the back,
1
/
4
” at the top, and
1
/
4
” at the sides. If the door side is against a wall, allow at least 2
1
/
16
” of clearance. The installaon should allow
the unit to be pulled forward for servicing, if necessary.
90
Door Swing
1 /
16
“
15
5
/
8
"
2 /”
1-2”
1/4
”
1/4”
1/4”
1 - 2”
Note: The refrigerator should be installed on a rm and level surface that will be able to support
the enre weight of a fully loaded unit. It is important for the refrigerator to be level in order to
work properly. If needed, you can adjust the height of the refrigerator by rotang the feet. See the
“Leveling the Refrigerator” secon.
Note: A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with
Naonal Electrical Code and local codes and ordinances, is required.
Notes:
• To ensure proper service access and venlaon, allow between 1 - 2 inches of clearance at
the back as shown in the diagram.
• The installaon should allow the unit to be pulled forward for servicing, if necessary.
• A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with
Naonal Electrical Code and local codes and ordinances, is required.
Top View: Side View:
