Avalue Technology ECM-945GSE - Setting Jumper and Connector

User’s Manual
ECM-945GSE User’s Manual
45

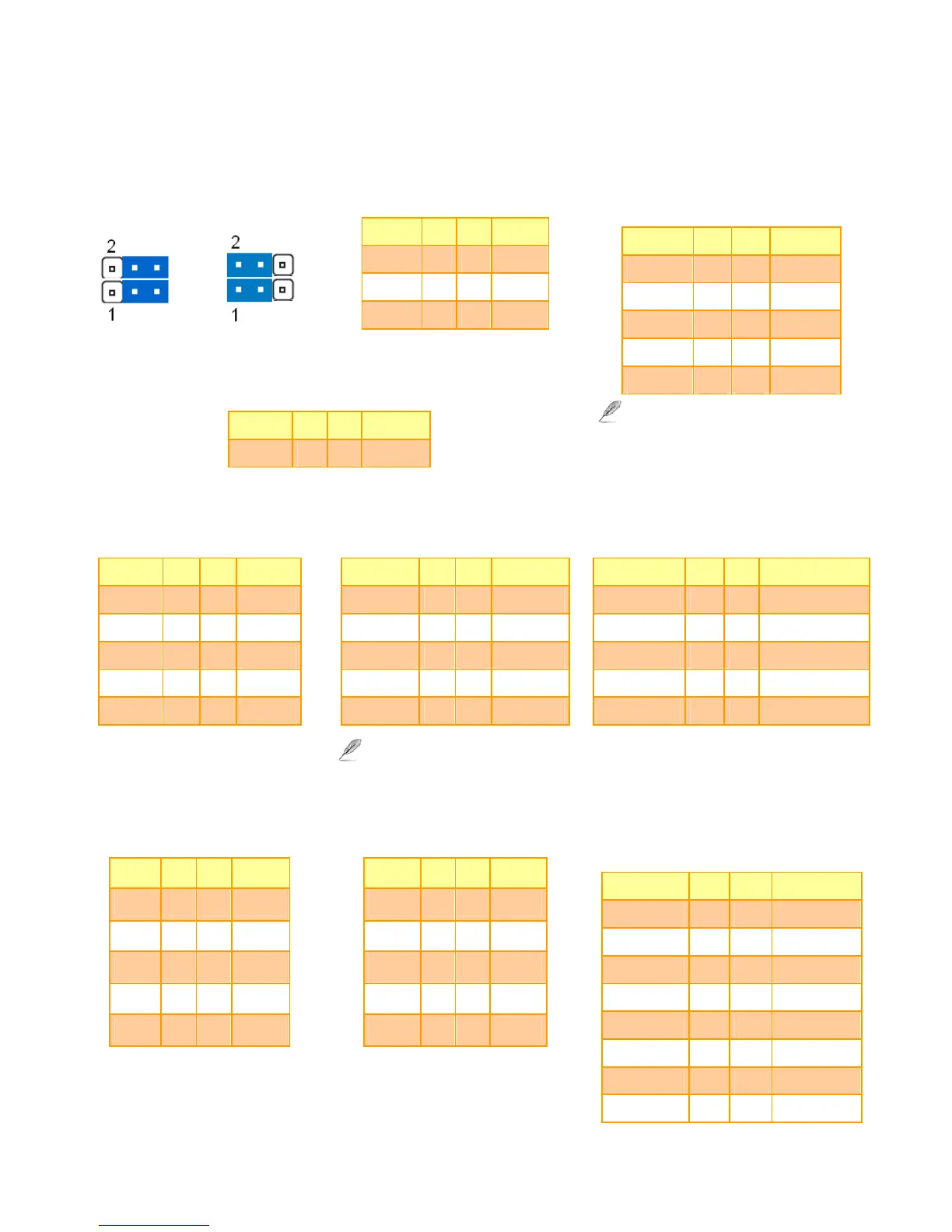

2.5.3 Setting Jumper and Connector
Line out/Speaker out Select(JP6) 2.54mm USB Connector (JP1)
Line Out*
*Default
Speaker Out
Signal PIN PIN Signal
SPR1 1 2 SPL1
OUT_R 3 4 OUT_L
OUTR 5 6 OUTL
TV-out Connector (JP8)
Signal PIN PIN Signal
COMP 1 2 TVGND
Signal PIN PIN Signal
+5V 1 2 GND
D1- 3 4 GND
D1+ 5 6 D2+
GND 7 8 D2-
GND 9 10 +5V
Note: Wrong USB cable
configuration with your USB devices might
cause your USB devices damaged
.
2.54mm USB Connector (JP2) Audio Connector (JP3)
Signal PIN PIN Signal
+5V 1 2 GND
D3- 3 4 GND
D3+ 5 6 D4+
GND 7 8 D4-
GND 9 10 +5V
2CH
Signal PIN PIN Signal
Line out R 1 2 Line out L
GND 3 4 GND
Line in R 5 6 Line in L
Mic In 7 8 Mic Bais
SPK R 9 10 SPK L
Note:
Select 2 CH or 5.1CH by driver AP.
5.1 CH
Signal PIN PIN Signal
Line out R 1 2 Line out L
GND 3 4 GND
Surround R 5 6 Surround L
Center 7 8 Subwoofer-out
SPK R 9 10 SPK L
2.0mm USB Connector
(JP4)
2.0mm USB Connector (JP5)
TV / Audio Connector (JP7)
ignal PIN PIN Signal
+5V 1 2 GND
D3- 3 4 GND
D3+ 5 6 D4+
GND 7 8 D4-
GND 9 10 +5V
Signal PIN PIN Signal
+5V 1 2 GND
D1- 3 4 GND
D1+ 5 6 D2+
GND 7 8 D2-
GND 9 10 +5V
Signal PIN PIN Signal
Mic In 1 2 Mic Bais
GND 3 4 GND
Line out L 5 6 Line out R
SPK L 7 8 SPK R
Line in L 9 10 Line in R
GND 11 12 NC
TVGND 13 14 NC
TVGND 15 16 COMP
