32 (40)

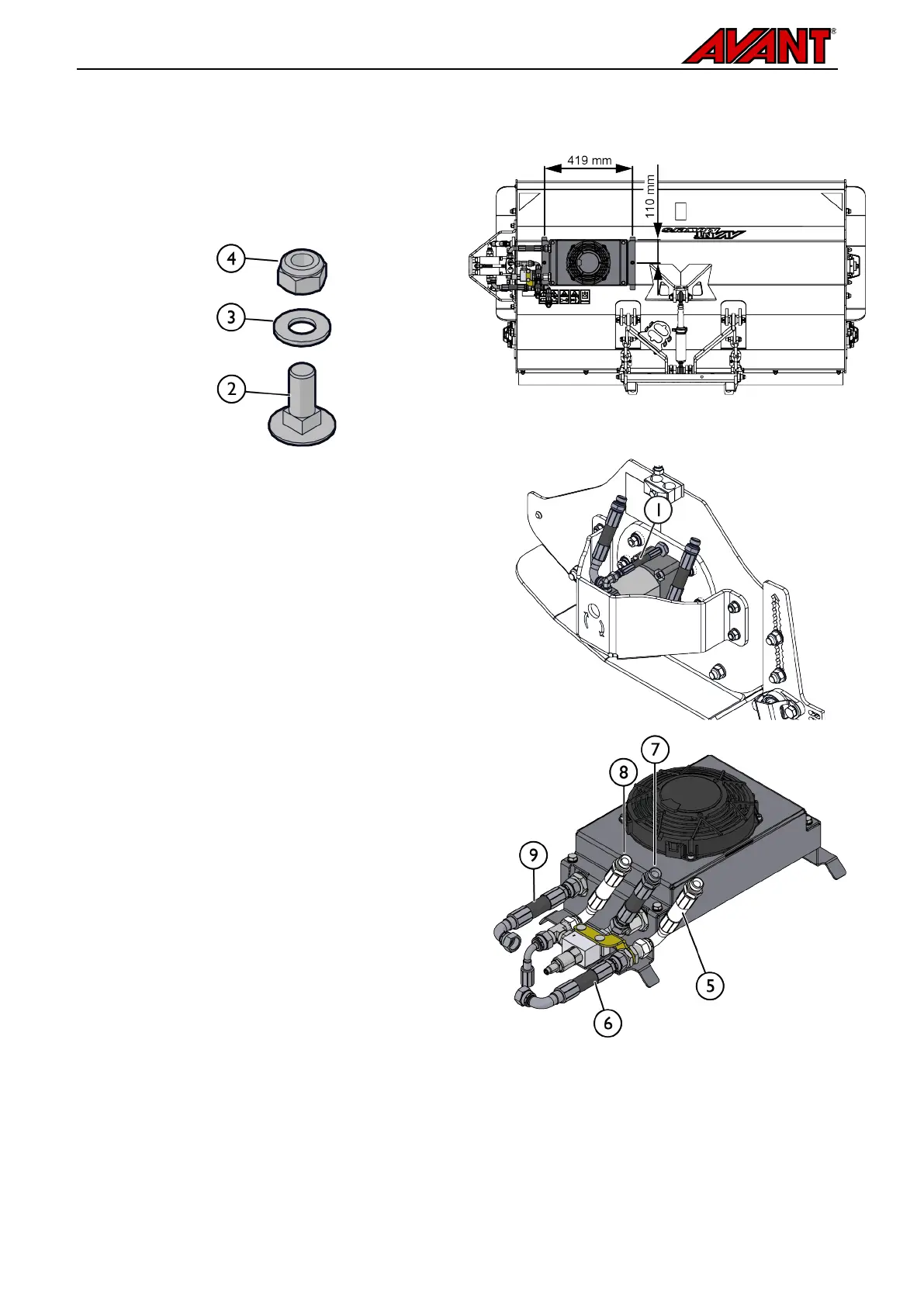

To install the auxiliary cooler:
1.
Drill two holes diameter of 10 mm on the cover of
the flail mower as shown in the adjacent figure.
Install the cooler on the cover of the flail mower
with lock screws 74836 (2), washers 73122 (3)
and nuts 72320 (4).
2.
Remove the original drain line (1) from the
hydraulic motor of the flail mower as shown in the
adjacent figure.
3. Connect the other hydraulic fittings as follows:
New pressure line to the hydraulic motor (6)
New return line to the loader (7)
New return line from the hydraulic motor (9)
to the cooler.
Pressure line (5)
Drain line (8)
The pressure line A450951 from the loader (5)
and return line A450951 to the loader (8) are
original connections when the hydraulic cooler is
not in use.
4. Connect the electrics as instructed on page 21.
