¬ UANTI-TIP BRACKET INSALLATION
To reduce the risk of tipping the range by abnormal usage or improper door loading, the range must
be secured by properly installing the anti-tip device packed with the appliance.

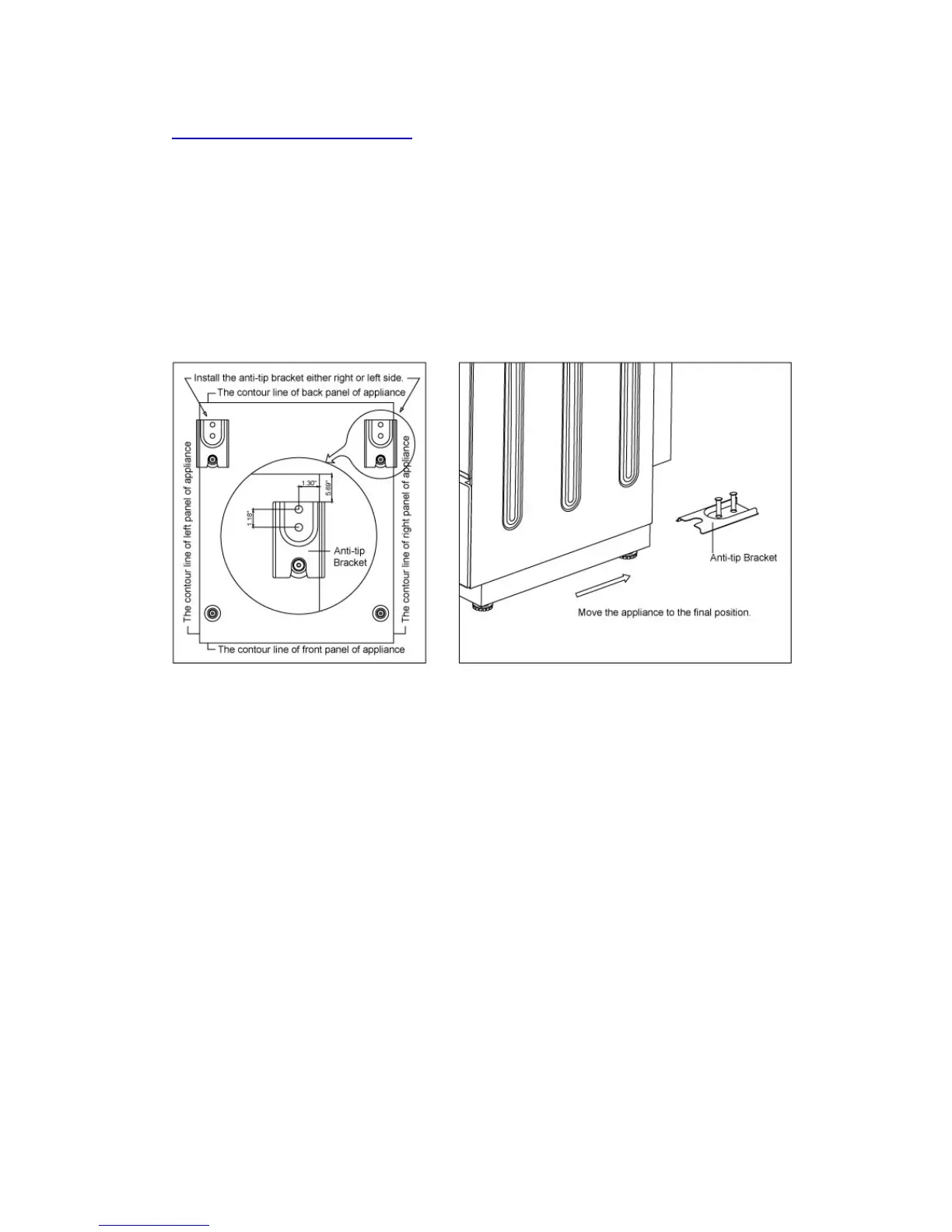

• Place the anti-tip bracket on the floor as shown figure. Anti-tip bracket can be installed on either
right or left side.
• Make the locations of 2 holes of ant-tip bracket on the floor.
• Use a 5/16” masonry drill bit and insert plastic anchor.
• Secure bracket to floor using screws supplied.
• Slide appliance into position.
NOTE: If range is relocated, the bracket must be removed and installed in new location.
