INSTALLATION
Mounting
The enclosure is prepared for
the inlet of wires from the
raceway to the wall (remo-
ving the special walls on the
right upper part see picture)
from under floor pipe or
flush-mounting box, thanks
to the special opening seated
on the base. The detector can
be installed directly on the
wall or into AVE flush-moun-
ting rectangular boxes codes:
2503, 2503MG, or 251CG3
with inner slots and distance
between centres of 83.5 mm, or into AVE flush-mounting round boxes
codes: 2501, 2501E, 2502 or 251CG with inner slots and distance bet-
ween centres of 60 mm.

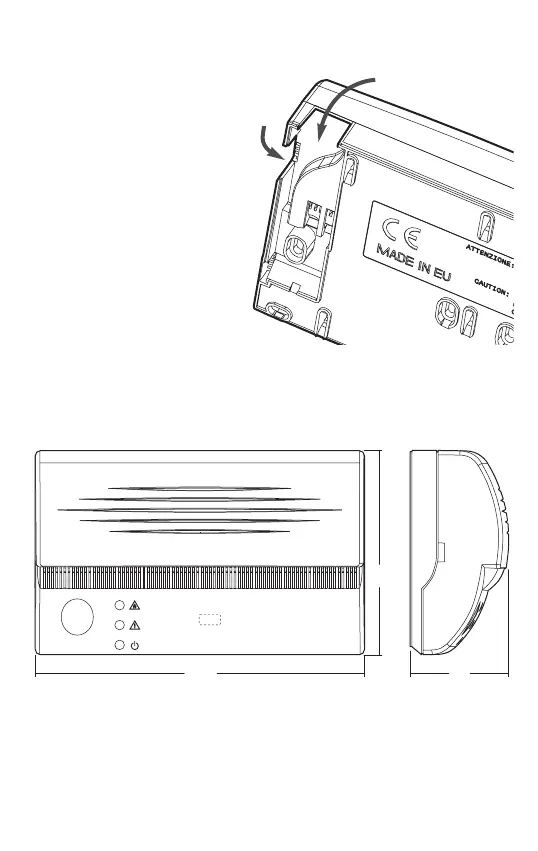

Overall dimensions
Where installing the device:
Install the detector as follows:
–2-4 metres from the gas run equipment (boiler, kitchen, etc.)
–Possibly in every room containing a gas appliance.
–In buildings with more than one floor, for better detection, one device
for every floor.
