AVE RG1-M - WIRING DIAGRAM; DESCRIPTION OF THE TERMINAL BOARD

30

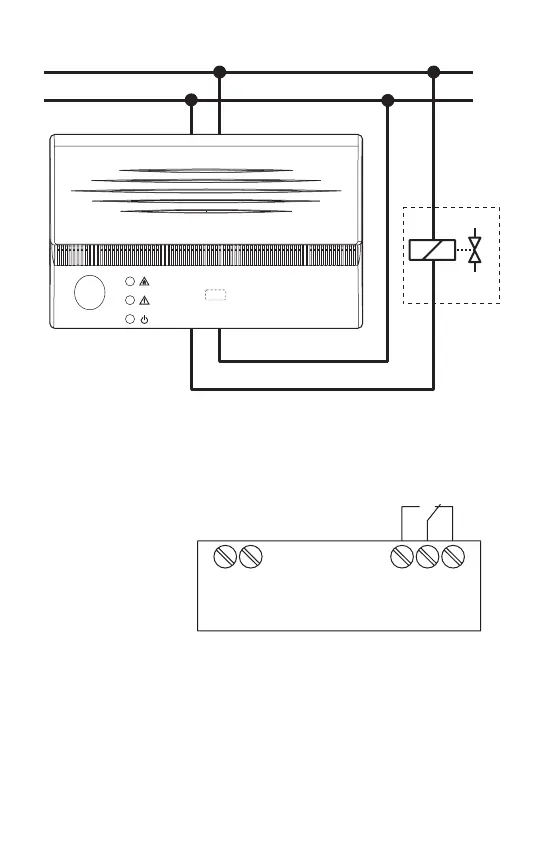

WIRING DIAGRAM
Solenoid valve
- Automatic release and manual reset.
Shunt coil 230V/14 VA (code AVE EVG220 Ø delivery diameter 3/4”).
For the instructions of the following:
• Maintenance
• Troubleshooting
• Limitations to the use of the detector
Refer to the instructions, pages 24, 25 and 26 of the manual of model
RG1-M.
Elettrovalvola
67
32
TEST
ALARM
Sostituire nel:
Replace in:
CEI UNI EN 50194
TIPO A

CONFORME NORME
UNI-EN
DI SICUR
EZZ
A
IMQ-CIG
230 Vca
Solenoid
valve
76 321
Alimentazione
230V/50Hz
Contatto
interno
NA NC
DESCRIPTION
OF THE
TERMINAL BOARD
Supply voltage
230V/50Hz
NO NC
Internal
contact
