AVer H727E CaptureHD - Device Connections Guide

AVerTV CaptureHD / AVer3D CaptureHD
ENG-2

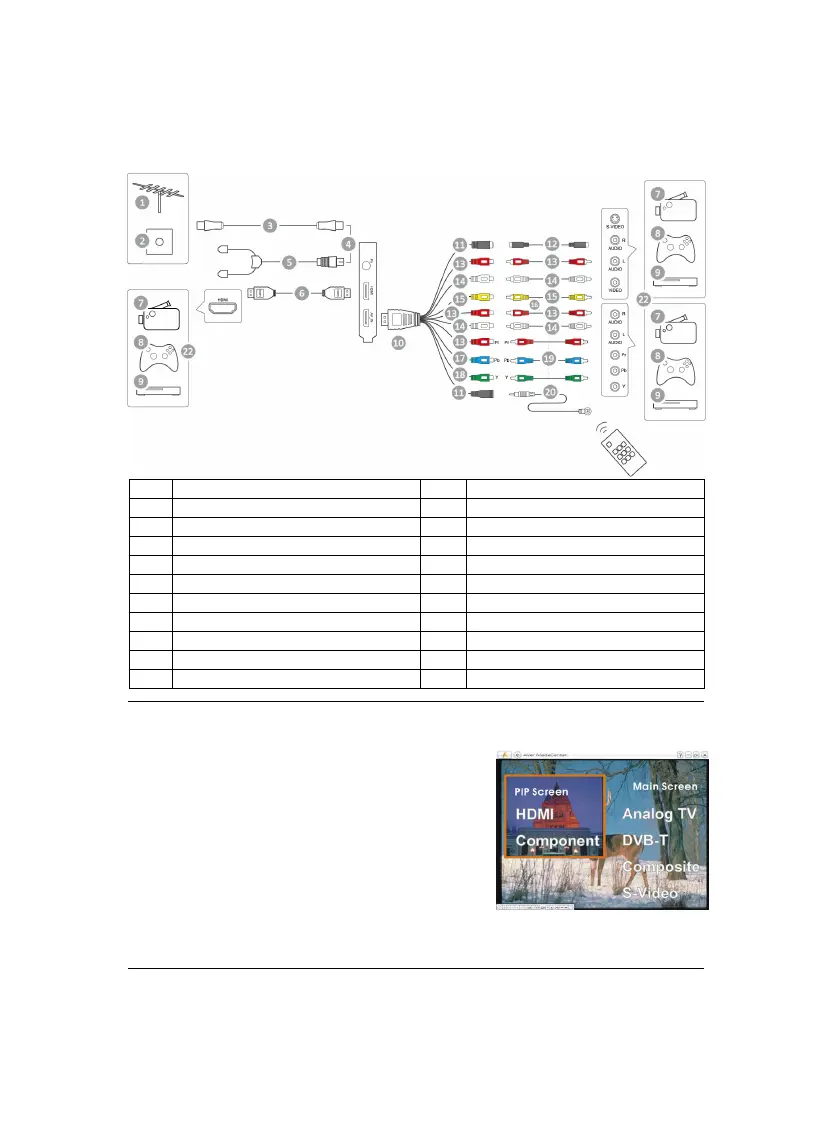

Step 2. Making the Connections
1
TV Antenna
12
S-Video Cable (not supplied)
2 TV Antenna Port 13 (Red)
3
TV Cable
14
(White)
4 OR 15 (Yellow)
5
FM Radio Antenna
16
Composite Cable (not supplied)
6 HDMI Cable (not supplied) 17 (Blue)
7
Camcorder
18
(Green)
8 Video Game 19 Component Cable (not supplied)
9
VCR/VCD/DVD Player
20
Infrared Sensor Cable
10 10-in-1 Cable 21 Remote Control
11
(Black)
22
Example
NOTE:
1. Video from component input that contains the
Macrovision copy protection cannot be
previewed.
2. HDMI source with HDCP (High-Bandwidth
Digital Content Protection) cannot be recorded.
3. You can simultaneously enjoy HDMI or
Component video in one window and watch TV,
composite video or S-video video in the other
window in PIP (Picture-in-Picture) / PBP
(Picture-by-Picture) display mode. For more information, please refer to the user’s
manual.
