AVer VB130 Quick Start Guide

English-6
Install PTZApp 2
Please go to https://www.aver.com/download-center (Global & European Headquarters) or
https://www.averusa.com/business/support/ (USA) to download the PTZApp 2. After downloading,
double-click on the file and follow the on-screen instructions to complete the installation.
After installing the PTZApp 2, double-click on the PTZApp 2 icon to run the application.

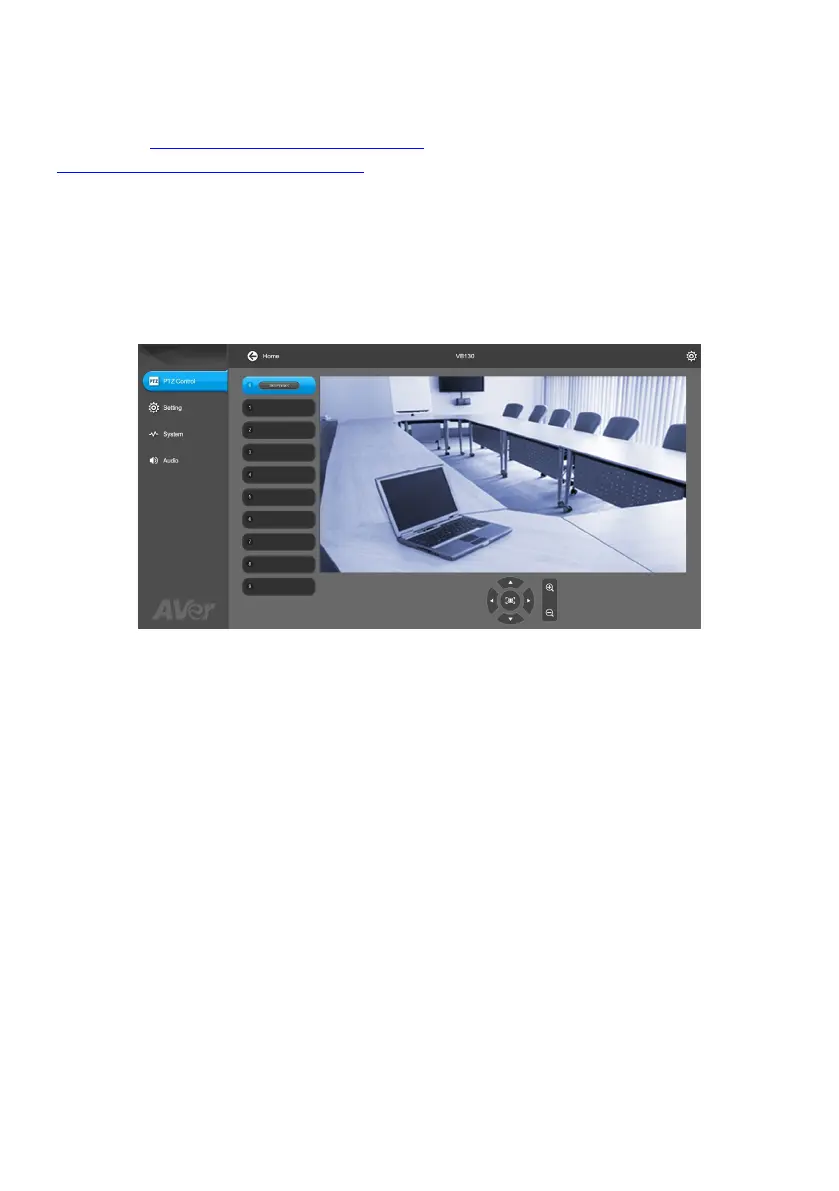

Use PTZApp 2
You can use the PTZApp 2 to set up AI tracking functions, pan, tilt and zoom the camera and some
advanced image and audio settings. Please refer to the user’s manual for details.

AVer VB130 Specifications

General

Megapixel	- MP
Sensor type	-
Digital zoom	4 x
White balance	Auto, Manual
Image sensor size	- \
Remote control interface	IR Wireless
Closest focusing distance	0.6 m
Field of view (FOV) angle	120 °
Number of microphone arrays	5
Product type	Group video conferencing system
Product color	Black, White
Wall mountable	Yes
Number of persons	- person(s)
Aspect ratio	4:3, 16:9
Maximum frame rate	60 fps
Video formats supported	M-JPEG, YUV, YUY2
Output level	92/96 dB
Frequency range	180 - 20000 Hz
RMS rated power	6 W
Microphone pick-up range	4 m
USB connector type	Mini-USB B, USB Type-A, USB Type-B
Windows operating systems supported	Windows 10, Windows 7
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, USB
Power cable length	3 m

Weight and Dimensions

Depth	75 mm
Width	350 mm
Height	65 mm
Weight	922 g
Package depth	146 mm
Package width	406 mm
Package height	189 mm
Package weight	2358 g
Remote control weight	50 g
Remote control dimensions (W x H x D)	42.3 x 19.29 x 149.72 mm
