AVERATEC 6100A - HDD Connector

58
HDD Connector

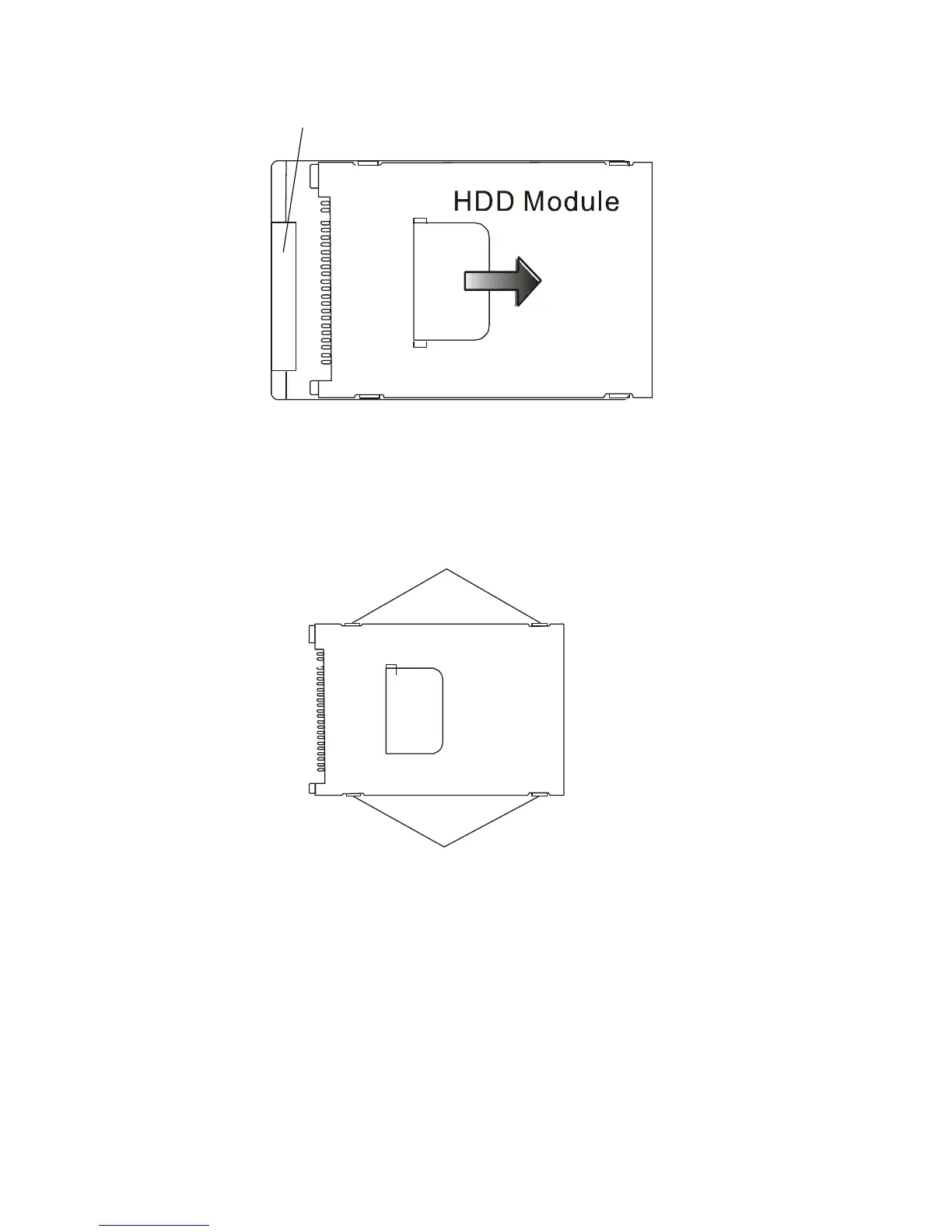

6. Locate and remove 4 “B” Screws from the HDD module.
Remove the metal case.
Screw B x2
Screw B x2
7. Re-attach the metal cover to the new hard drive and
tighten 4 “B” Screws. Note the green PC board of the hard disk
drive is facing against the metal case.
8. Re-attach the HDD module to the HDD connector.
9. Put the HDD cover back and re-attach Screw A.
