Release 7/04 Page 28 Connections
LED Voltage
Ready LED
Overtemperature 100% on
Short circuit 25% on / 75% off
Both 75% on / 25% off
+ Direction
- Direction
- NC
+ NC
- Clock
Ready Collector
Ready Emitter
48VAC
48VAC
Phase1B
Phase1A
800
400
Resolution

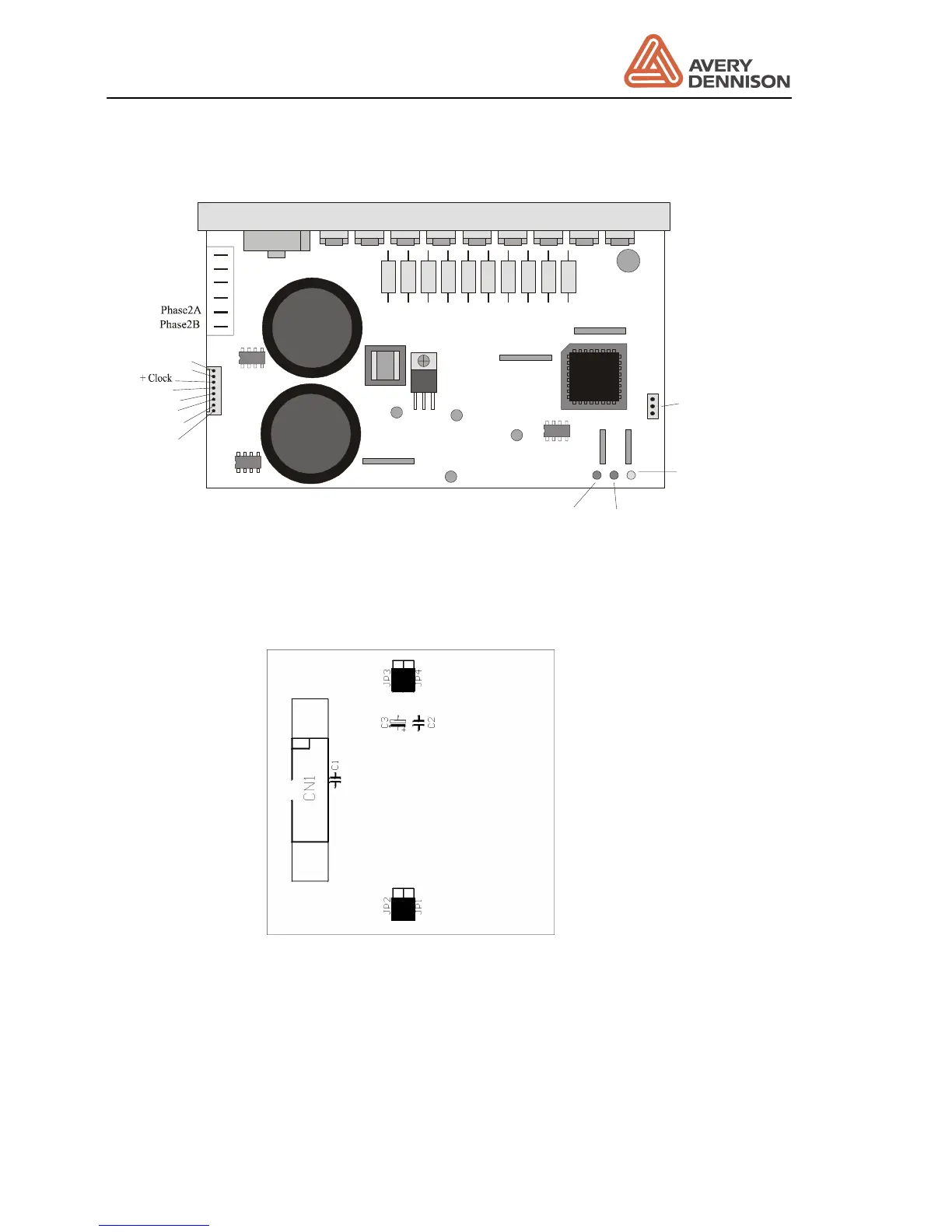

Figure 15 Layout stepper motor driver
The jumper position has to be 800 steps.
Figure 16 Layout display unit
