1.2 Leveling Feet Assembly
1.2.1

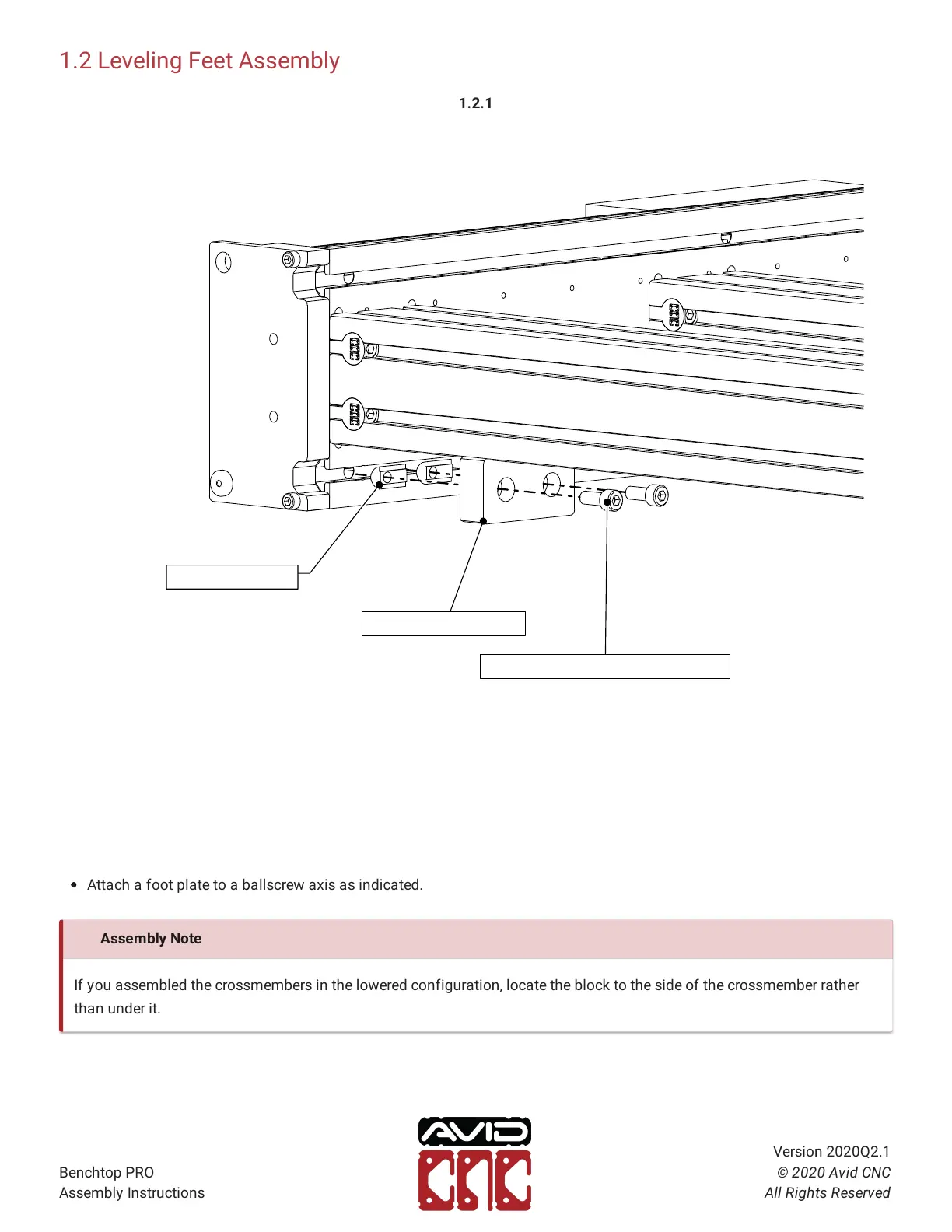

Attach a foot plate to a ballscrew axis as indicated.
M8 Roll-in T-Nut
CRP913-01 Foot Plate
M8 x 20mm Socket Head Cap Screw
Assembly Note
If you assembled the crossmembers in the lowered configuration, locate the block to the side of the crossmember rather
than under it.

