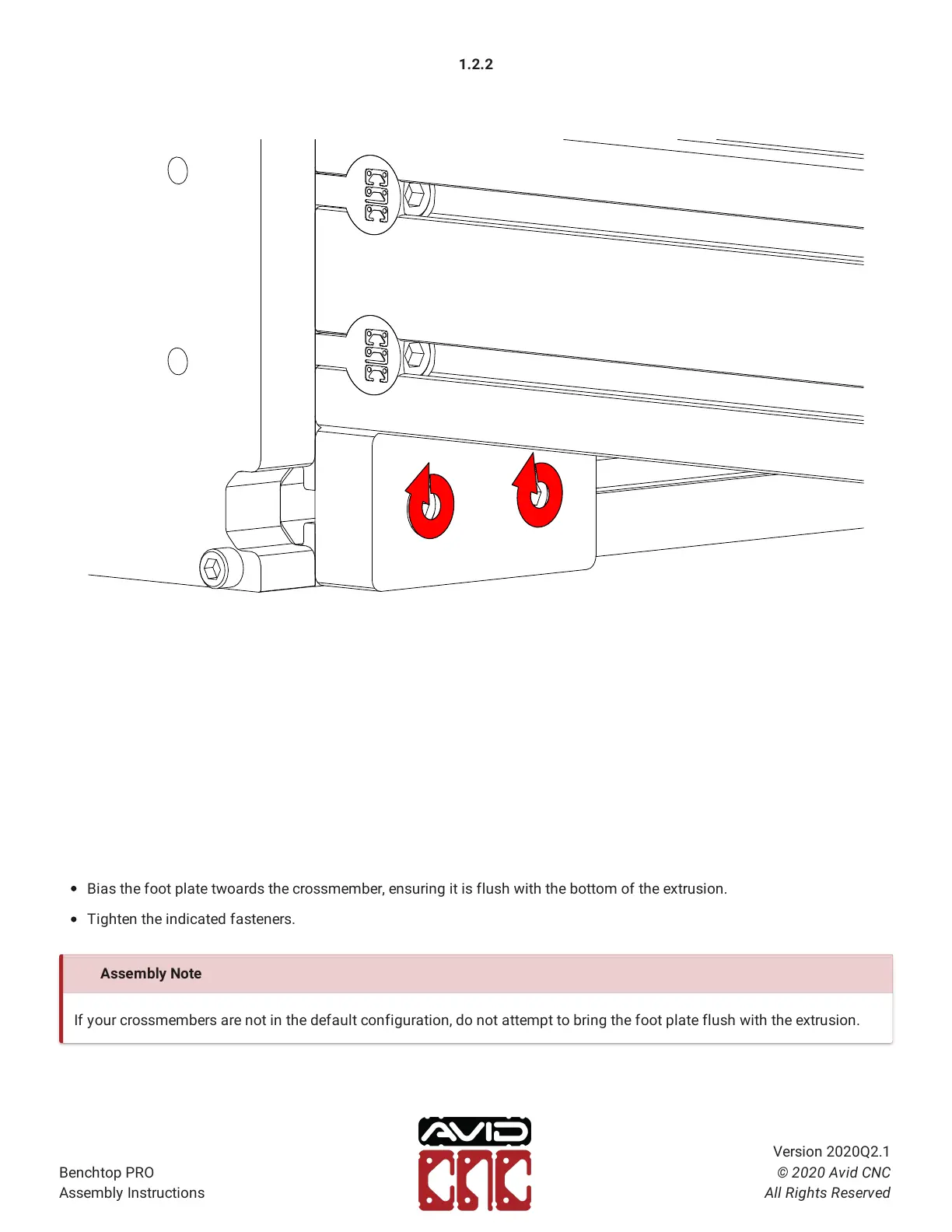

1.2.2
Bias the foot plate twoards the crossmember, ensuring it is flush with the bottom of the extrusion.
Tighten the indicated fasteners.
Assembly Note
If your crossmembers are not in the default configuration, do not attempt to bring the foot plate flush with the extrusion.

