2.2 Gantry Axis Installation
2.2.1

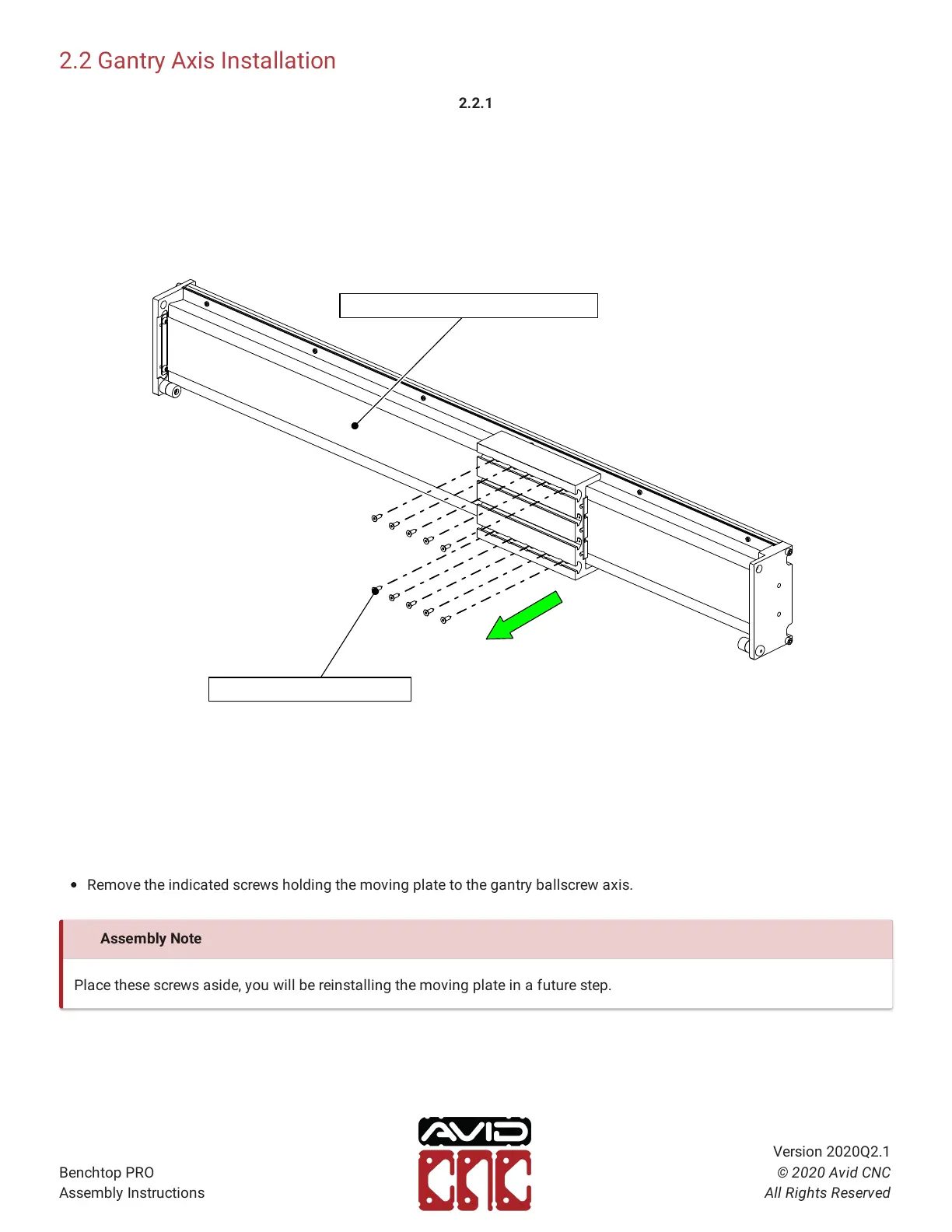

Remove the indicated screws holding the moving plate to the gantry ballscrew axis.
CRP840-00 Ballscrew Axis, Gantry
M5 x 14mm Flat Head Screw
Assembly Note
Place these screws aside, you will be reinstalling the moving plate in a future step.

