2.2.2

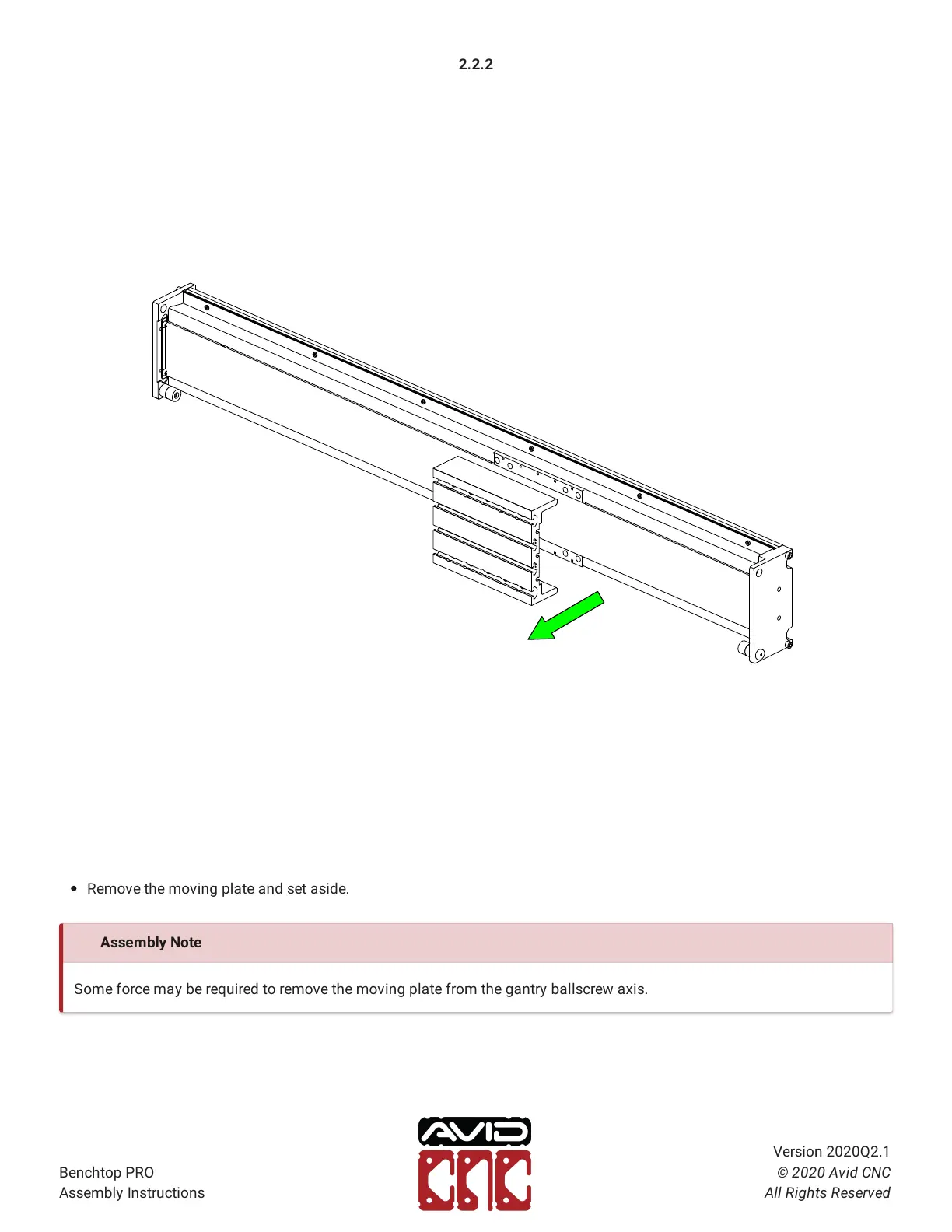

Remove the moving plate and set aside.
Assembly Note
Some force may be required to remove the moving plate from the gantry ballscrew axis.

Benchtop PRO
Assembly Instructions
Version 2020Q2.1
