2.2.5

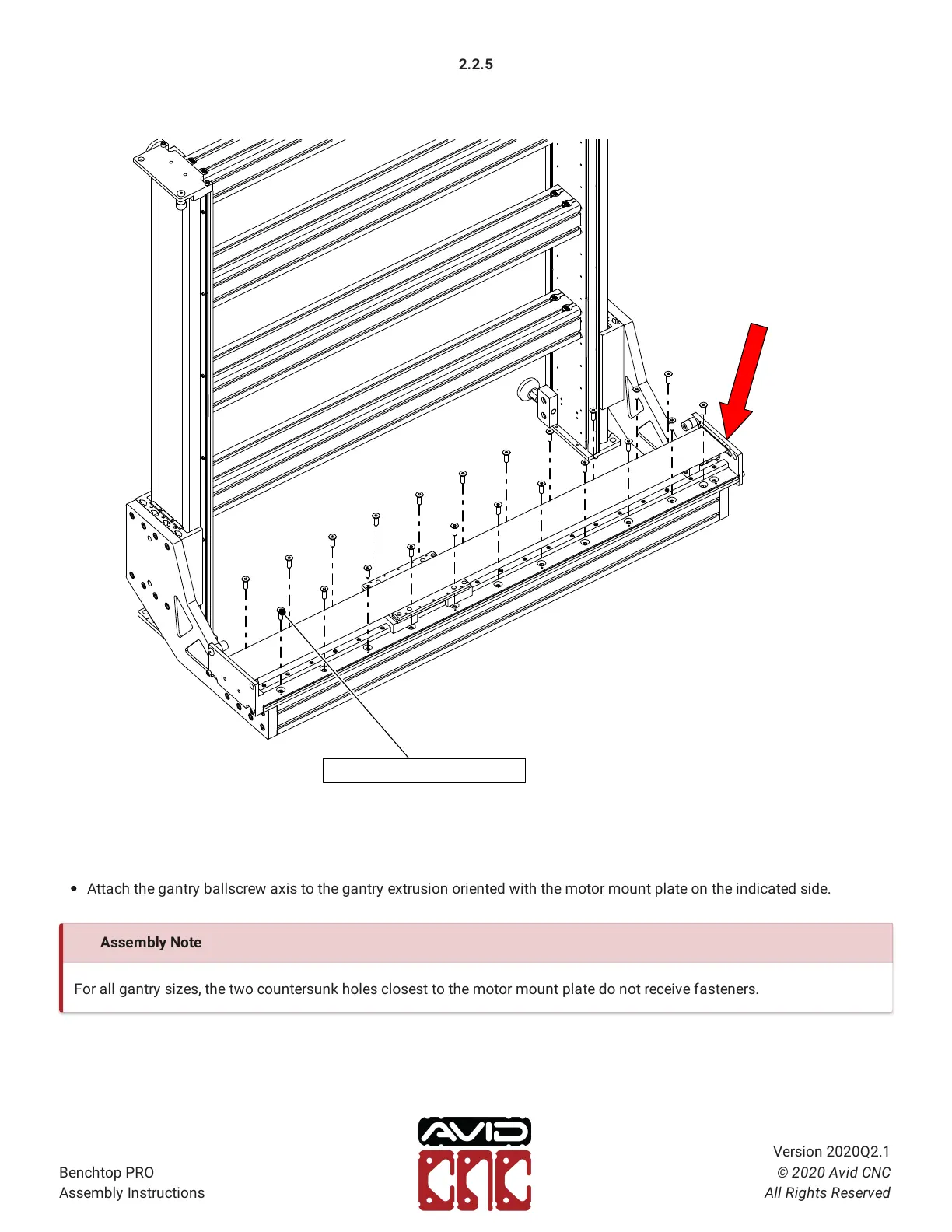

Attach the gantry ballscrew axis to the gantry extrusion oriented with the motor mount plate on the indicated side.
Motor Mount Plate
M8 x 25mm Flat Head Screw
Assembly Note
For all gantry sizes, the two countersunk holes closest to the motor mount plate do not receive fasteners.

