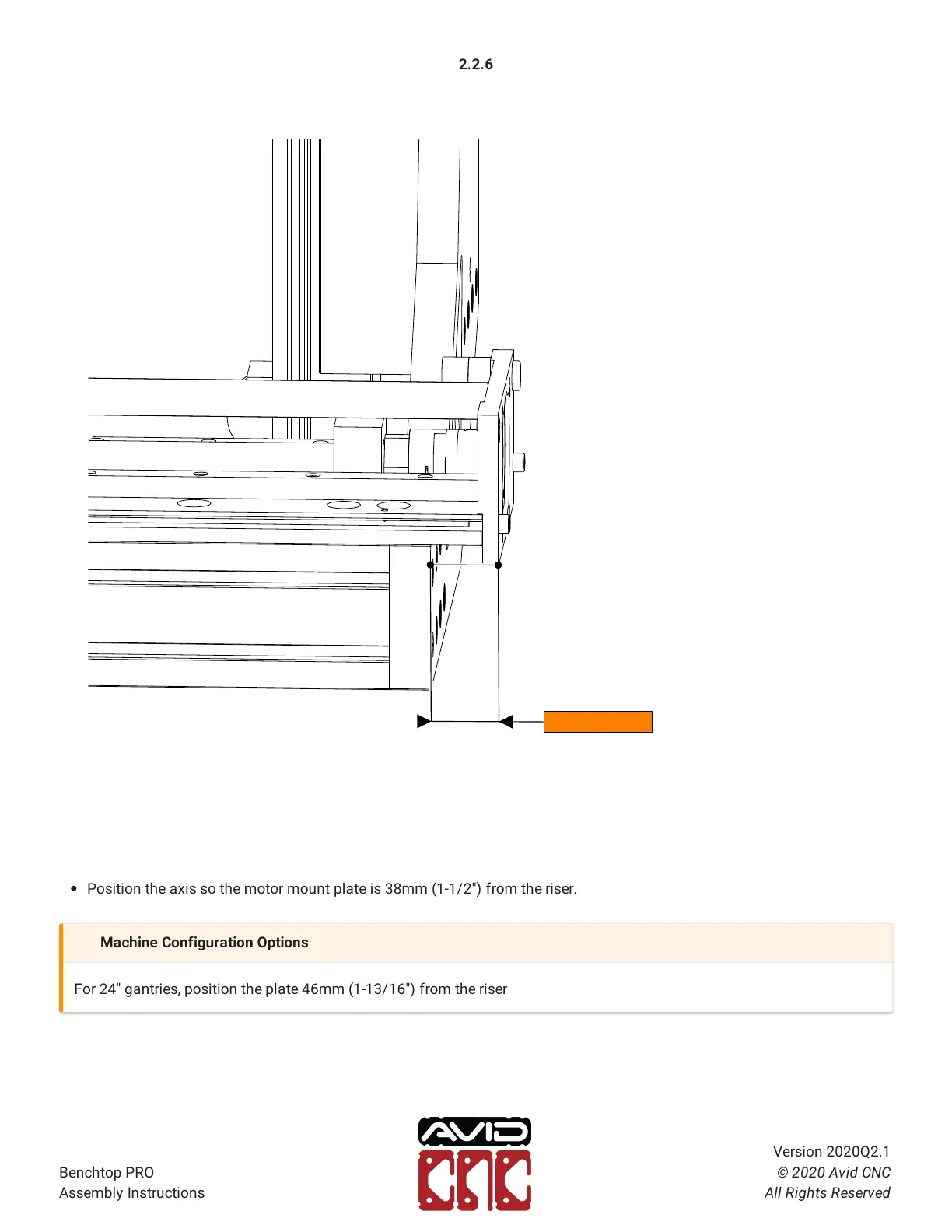

2.2.6
Position the axis so the motor mount plate is 38mm (1-1/2") from the riser.
38mm (1-1/2")
Machine Configuration Options
For 24" gantries, position the plate 46mm (1-13/16") from the riser

