System Details
8
4U Chassis Rear View and Details

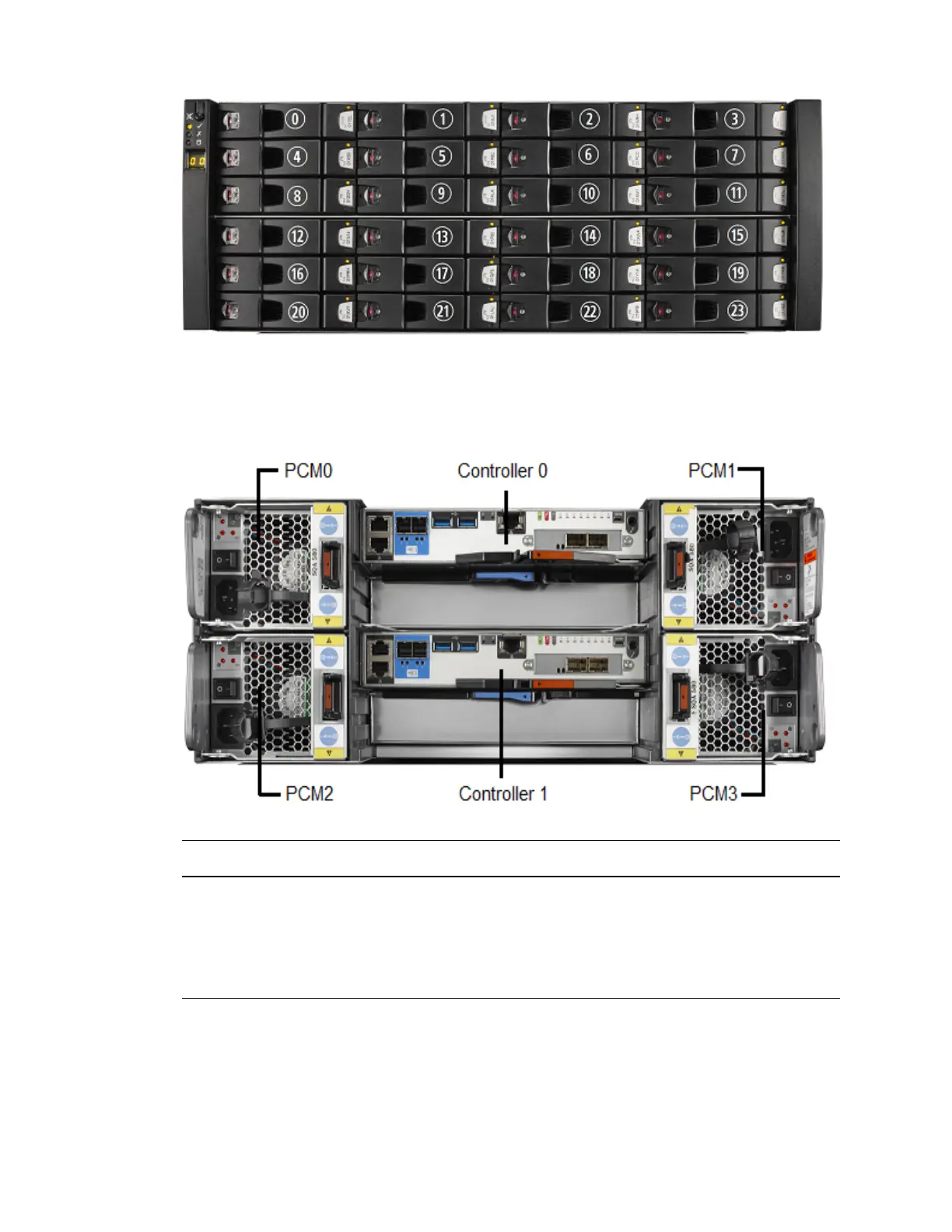

The rear of the Avid NEXIS | E4 provides access to the Controllers and the PCMs. If you use a
redundant Controller, it must be installed in the third slot from the top (slot 2), as shown.
Rear View Features of Avid NEXIS | E4
Component Notes
Power/Cooling
Module (PCM)
Four 580W PCMs (as viewed from the rear, PCM 0=top left, PCM 1=top right,
PCM 2=bottom left, PCM 3=bottom right)
Storage Controller In a single Controller configuration, it must be installed in the top slot (identified in error
and status messages as Controller 0).
If a second Controller is installed, it is identified as Controller 1.
