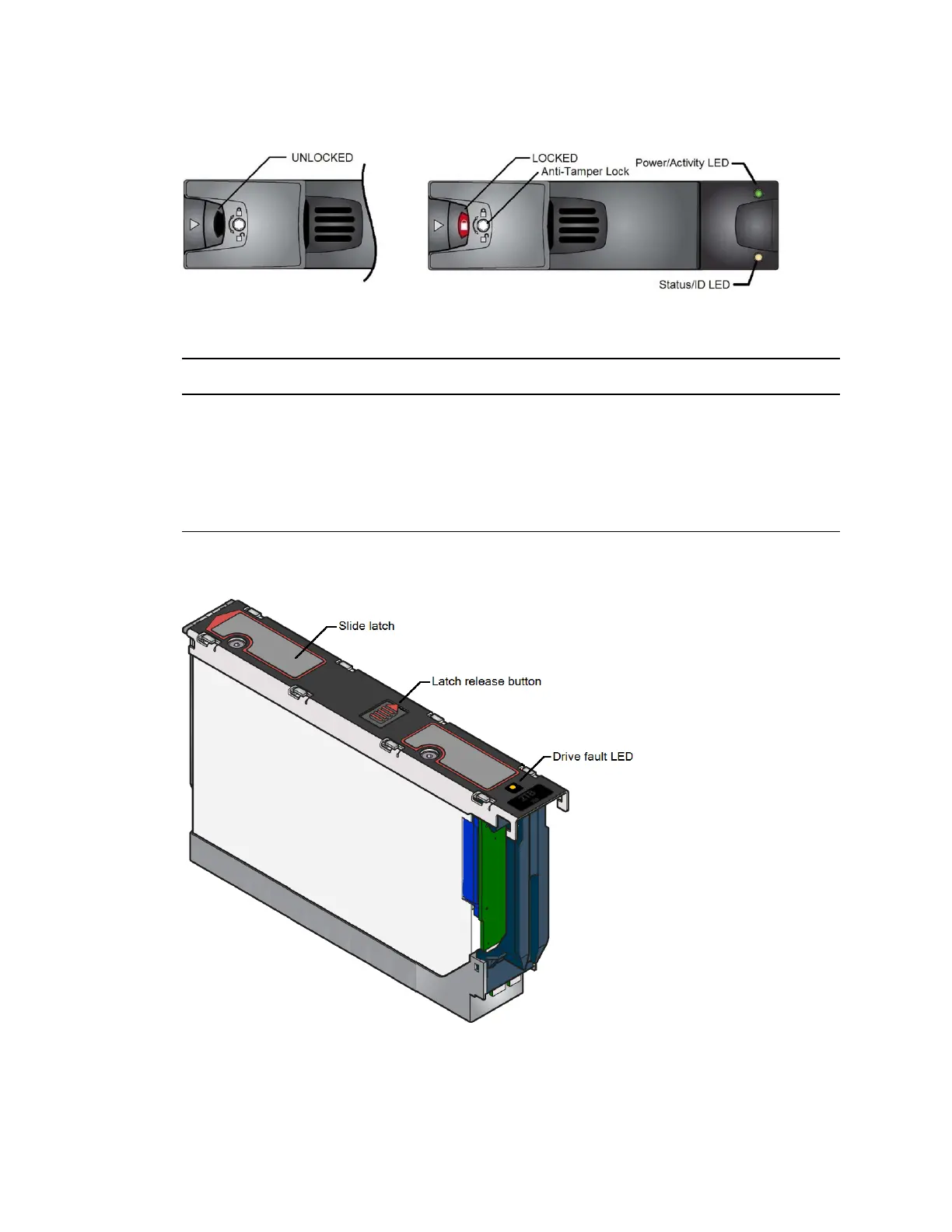

The drives used in the 2U and 4U chassis and System Director Appliance have a lock indicator and
two LEDs that show the drive status, explained in the following figure and table.
Drives in the 5U Chassis
The drives in the Avid NEXIS | E5 and Avid NEXIS | E5 NL Media Packs have one LED that
indicates a drive failure.
2U and 4U Drive Features
Feature Status Indicator
Power and activity LED Off—No power
Blinking—I/O activity
Status and identification LED Blinking 1second on, 1 second off—To identify the drive
On—Drive failed
Off—OK
