Mounting the Engine or System Director Appliance
31
The rack mount kit provides two sets of bracket extenders: a long pair and short pair. Use the pair
of bracket extenders that are most appropriate for your rack. For shallower racks use the longer
bracket extenders.

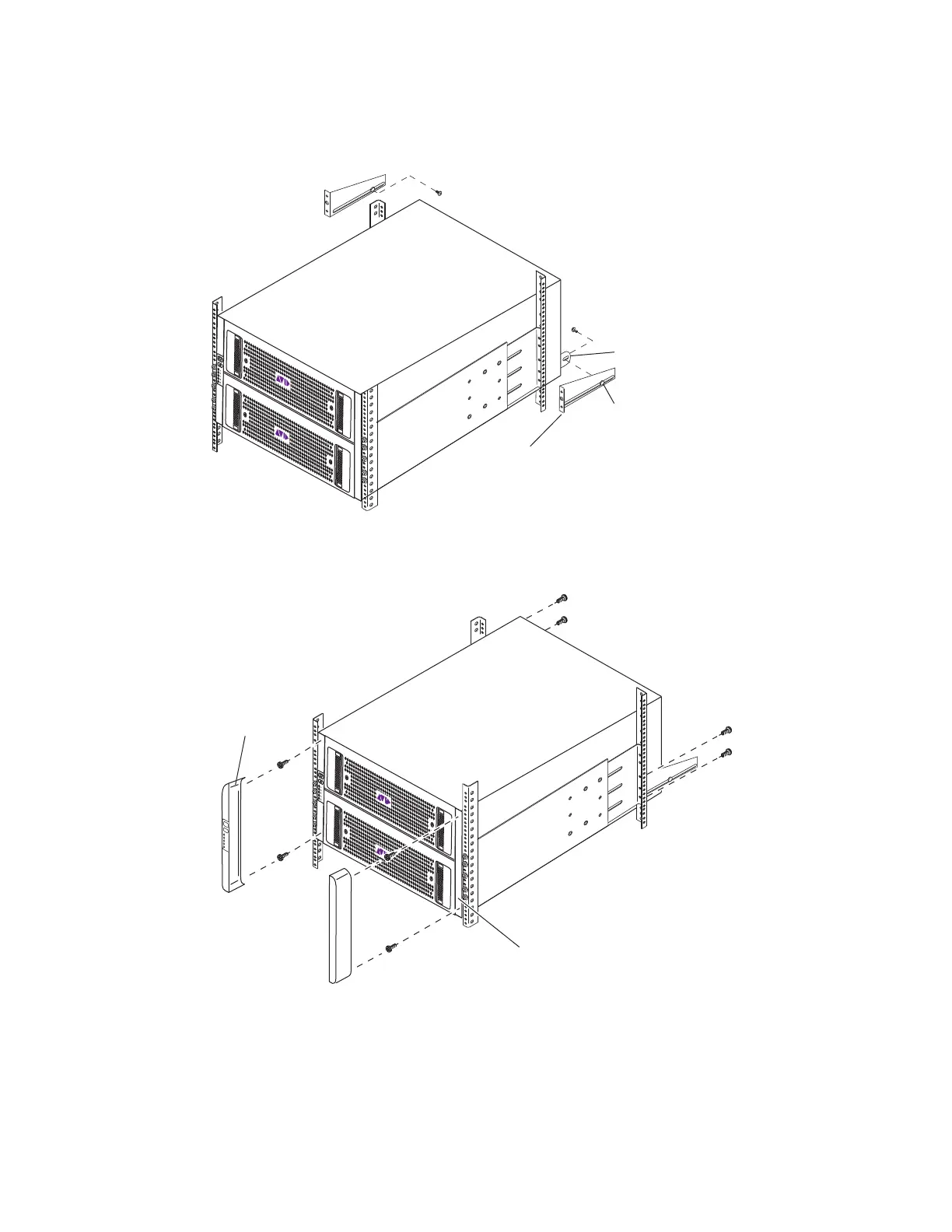

10. Using the screws from the rack mount kit, secure the Engine to the front of the rack through top
and bottom holes of the plastic end caps as shown in the following figure.
11. Using the screws from the rack mount kit or screws you supply, secure the rear stabilizer
brackets to the rear rack mount rails through top and bottom holes in the extender bracket as
shown in the preceding figure.
12. Snap the left and right plastic covers over the plastic end caps on the front Engine as shown in
the preceding figure.
Bracket extender
Rack mounting tab
Sliding nut
Plastic covers
Plastic end caps
