lever overhaul
15

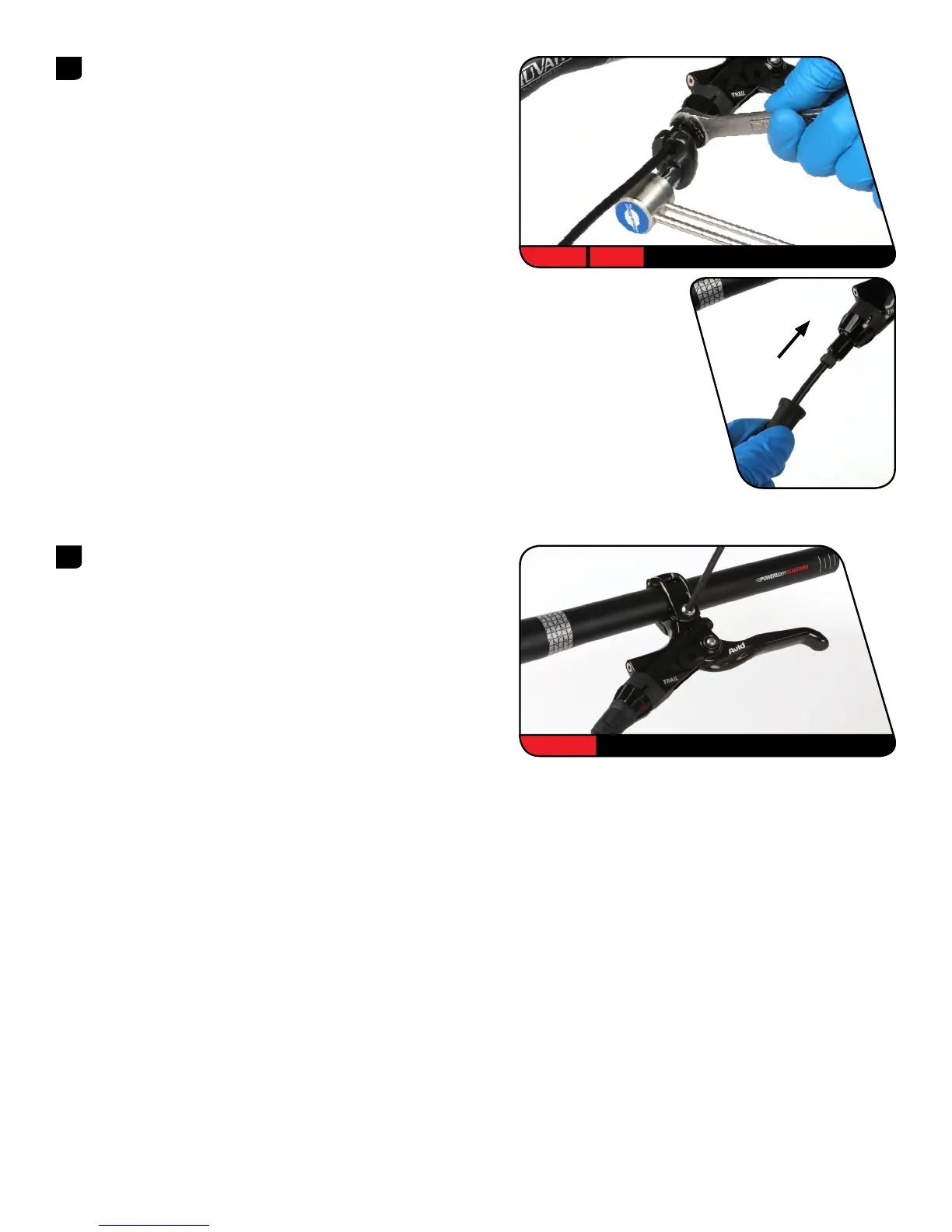

Thread the compression nut into the lever body until it stops. Hold
the hose stop secure with an 11 mm open end wrench and use a
torque wrench with an 8 mm flare nut crowfoot to tighten the
compression nut to 4.9-5.4 N·m (43-48 in-lb).
Spray isopropyl alcohol on the lever and clean it with a rag.
Slide the hose boot onto the compression nut.
16
Reinstall the brake lever to the Discrete clamp, MMX, or XLoc™. Use
a torque wrench with a T25 TORX® bit socket to reinstall the brake
clamp bolt into the Discrete clamp, MMX, or XLoc and tighten it to
5-6 N·m (44-52 in-lb).
8 mm 11 mm 4.9-5.4 N·m (43-48 in-lb)
T25 5-6 N·m (44-52 in-lb)
