caliper overhaul
CALIPER OVERHAUL

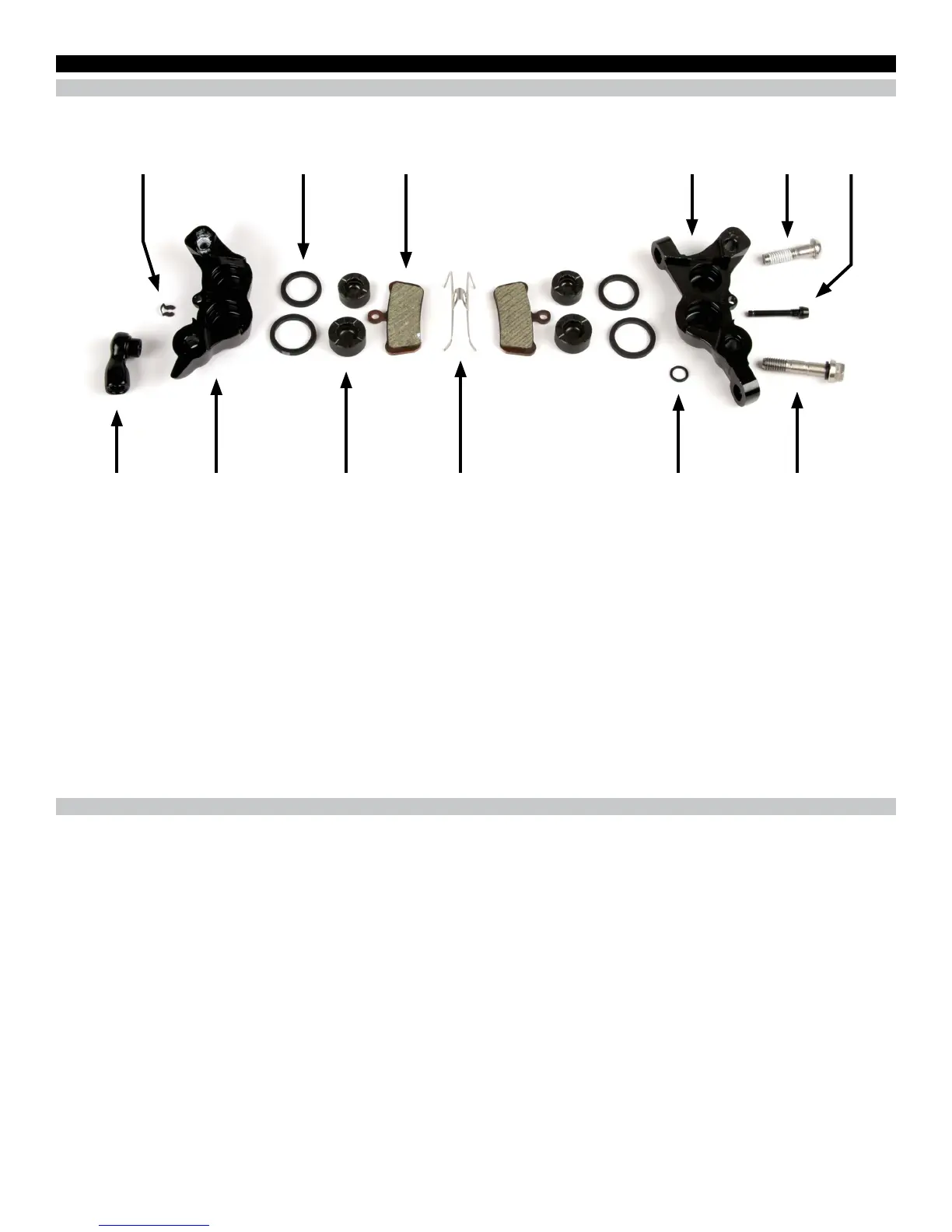

CALIPER EXPLODED VIEW
A
B C
G
H
D
E
F
I
J
K
L
A. E-clip G. Banjo fitting
B. Piston seals H. Inboard caliper body half
C. Brake pad I. Caliper pistons
D. Outboard caliper body half J. Pad spreader clip
E. Caliper body bolt K. Caliper o-ring
F. Pad retainer bolt L. Banjo bolt
PARTS AND TOOLS NEEDED FOR SERVICE
• Safety glasses
• Nitrile gloves
• Oil pan
• Isopropyl alcohol
• Clean, lint-free rag
• Avid High-Performance 5.1 DOT Fluid or DOT 4 Fluid, or Avid
DOT Grease or DOT 5.1 or 4 compatible grease
• Air compressor with rubber-tipped blow gun chuck
• Soft rubber mat or small section of butyl inner tube
• Needle nose pliers
• Pick with a 90 degree bent tip
• 2.5, 5 mm hex wrench
• 2.5 mm hex bit socket
• T25 TORX®
• T25 TORX bit socket
• 8 mm open end wrench
• 8 mm flare nut crowfoot
• Torque wrench
