caliper overhaul
11

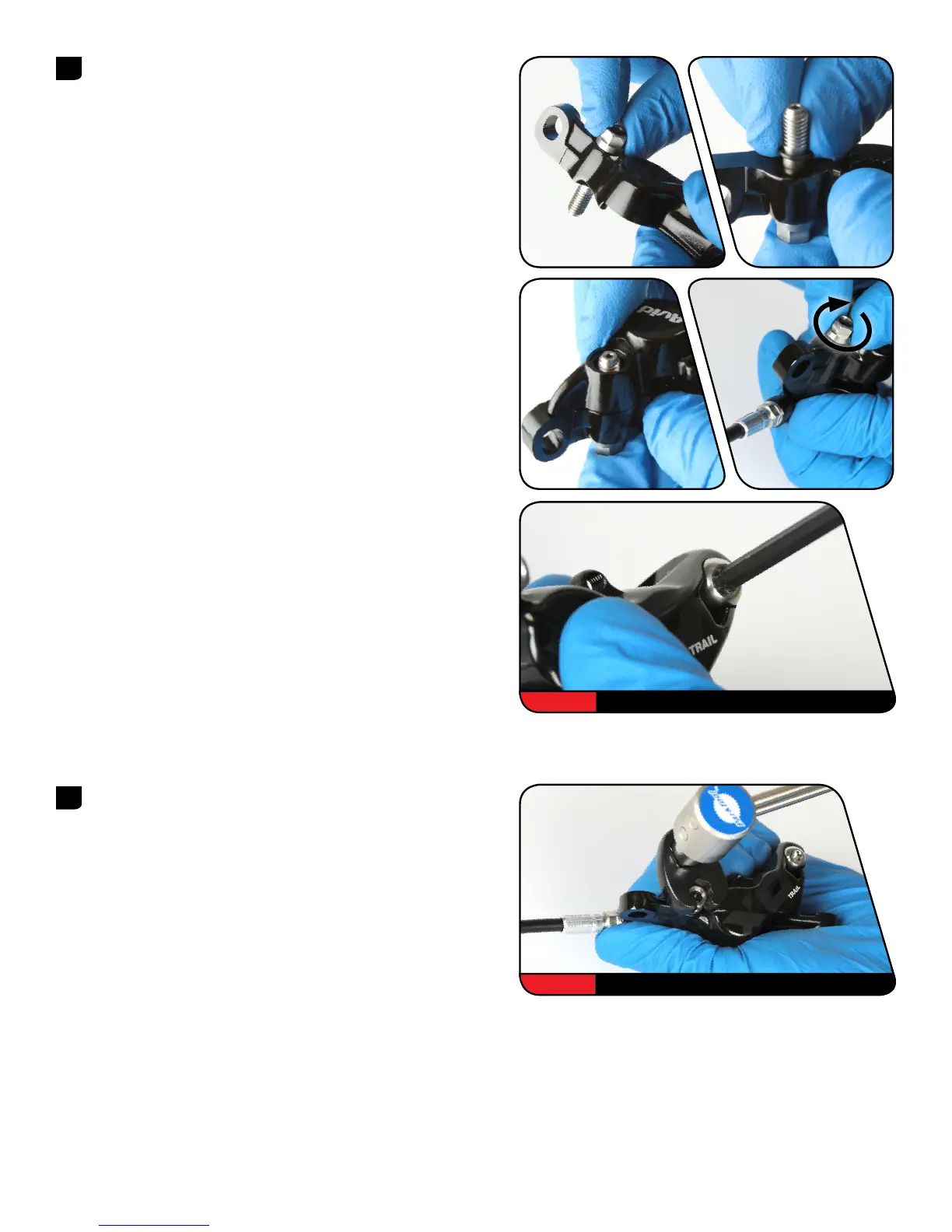

Reassemble the caliper halves.
Insert the banjo bolt through the outboard caliper half. Apply a
small amount of DOT 5.1 fluid to the caliper o-ring and install it
onto the banjo bolt.
Place the inboard caliper half onto the banjo bolt. Place the banjo
fitting onto the threads of the banjo bolt. Turn the bolt into the
fitting until it stops. Do not tighten the banjo bolt yet.
Install the caliper body bolt and use a torque wrench with a T25
TORX® bit socket to tighten it to 9.7-11.7 N·m (86-104 in-lb).
12
Hold the banjo fitting at the desired angle. Use a torque wrench
with an 8 mm flare nut crowfoot to tighten the banjo bolt to
9.7-11.7 N·m (86-104 in-lb).
T25 9.7-11.7 N·m (86-104 in-lb)
8 mm 9.7-11.7 N·m (86-104 in-lb)
