lever overhaul
1

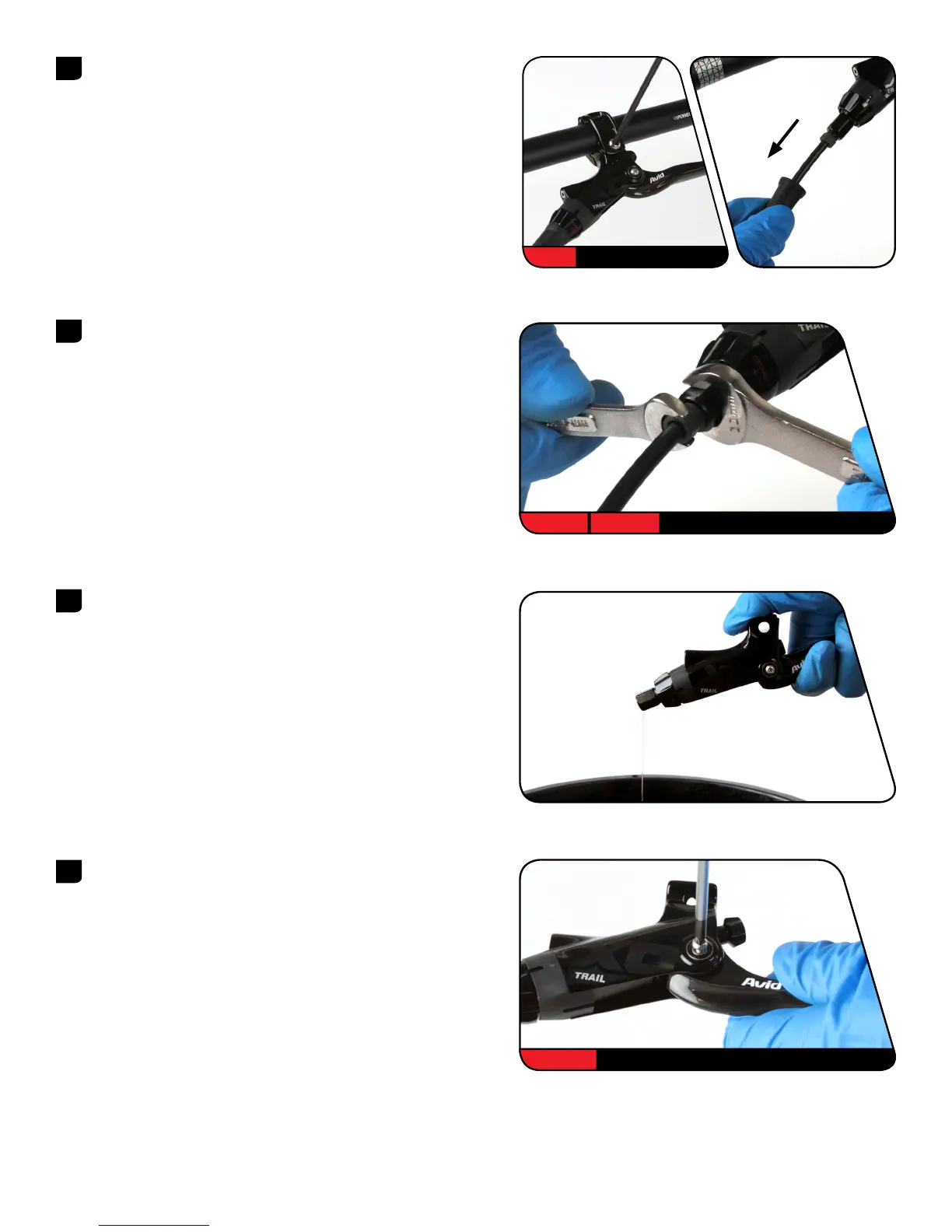

Use a T25 TORX® wrench to remove the brake clamp bolt from the
Discrete clamp, MMX, or XLoc™ (XLoc requires removal of the
shifter). Remove the brake lever from the handlebar. Pull the hose
boot off the compression nut and slide it down the hose.
2
Use an 11 mm open end wrench to hold the hose stop in place and
use an 8 mm flare nut wrench to remove the hose compression nut.
Pull the brake hose and compression fitting from the brake lever
body.
3
Pour the brake fluid into an oil pan. Squeeze the lever to pump
excess brake fluid from inside the lever assembly.
If the system has been contaminated with the wrong fluid, flush
all the parts with soapy water, rinse, and allow to dry prior to
rebuilding. Install all new seals and a new hose.
4
Use a T10 TORX to remove the pivot bolts from both sides of the
lever.
T25 Discrete Clamp
8 mm 11 mm
T10
To Next Page
