7

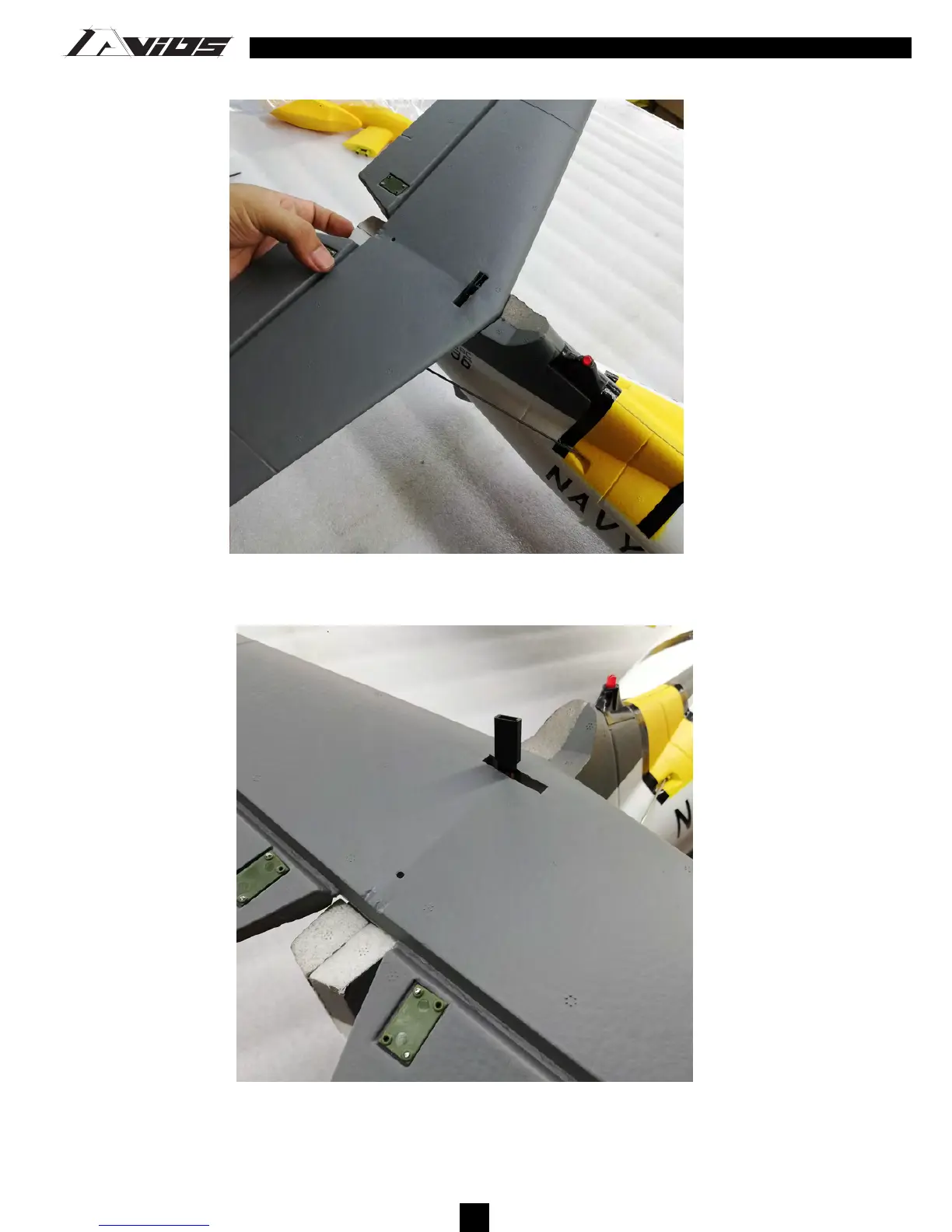

Step 9: Position the tailplane onto the rear of the
fuselage.
Step 10: Ensure you pass the connector through the
slot in the tailplane. Check the tailplane is correctly
aligned as the glue sets.
