As setting finished , please click “ Apply “ to save the setting in this area , the webpage will
refresh and user can see the final setting result. Ten different set up rules for different port .
3. Other Setting :
The setting here is for each rule .

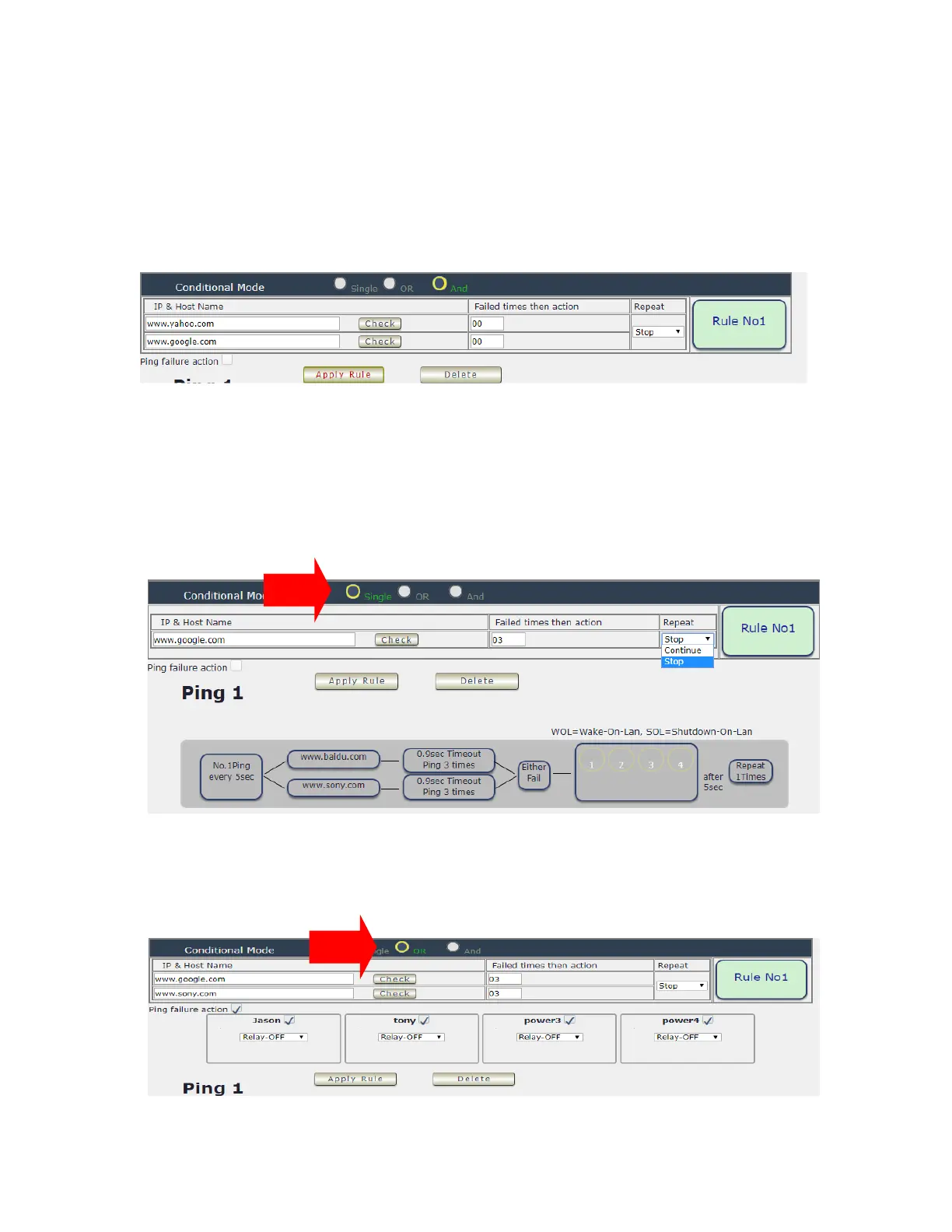

⚫ Logic Mode :
User can select the action activate by one / two IP Host failure or either one fail
- Single : Execute Action by one IP Host failure .
- OR : Execute Action by either one IP Host failure as setting 2 pcs IP Host
- And : Execute Action by both IP Host failure as setting 2 pcs IP Host
Single : 9858MT will Ping one IP address. As the IP fail times reach to the setting times .
Action (ON/OFF/RESET) will be activated .
OR : 9858MT will Ping 2 IP address. Either one IP fail times reach to the setting times.
Action (ON/OFF/RESET) will be activated .
AND : 9858MT will Ping 2 IP address. Both IP fail reach to the setting times.
Action (ON/OFF/RESET) will be activated.
